This hydraulic punch kit has 15 tons of power behind it and will allow you to easily punch through materials like 11-gauge steel. It's made for tough jobs like working with pipe line, signal lamps and instruments in metallurgy, petrol, electronics, appliances, chemicals, shipping and machinery. It's a laborsaving and energy efficient device. The long handle makes for easy operation and it's sure to help you get any job done quicker!

SPECIFICATIONS
  • Brand New in Box and Ready to Ship

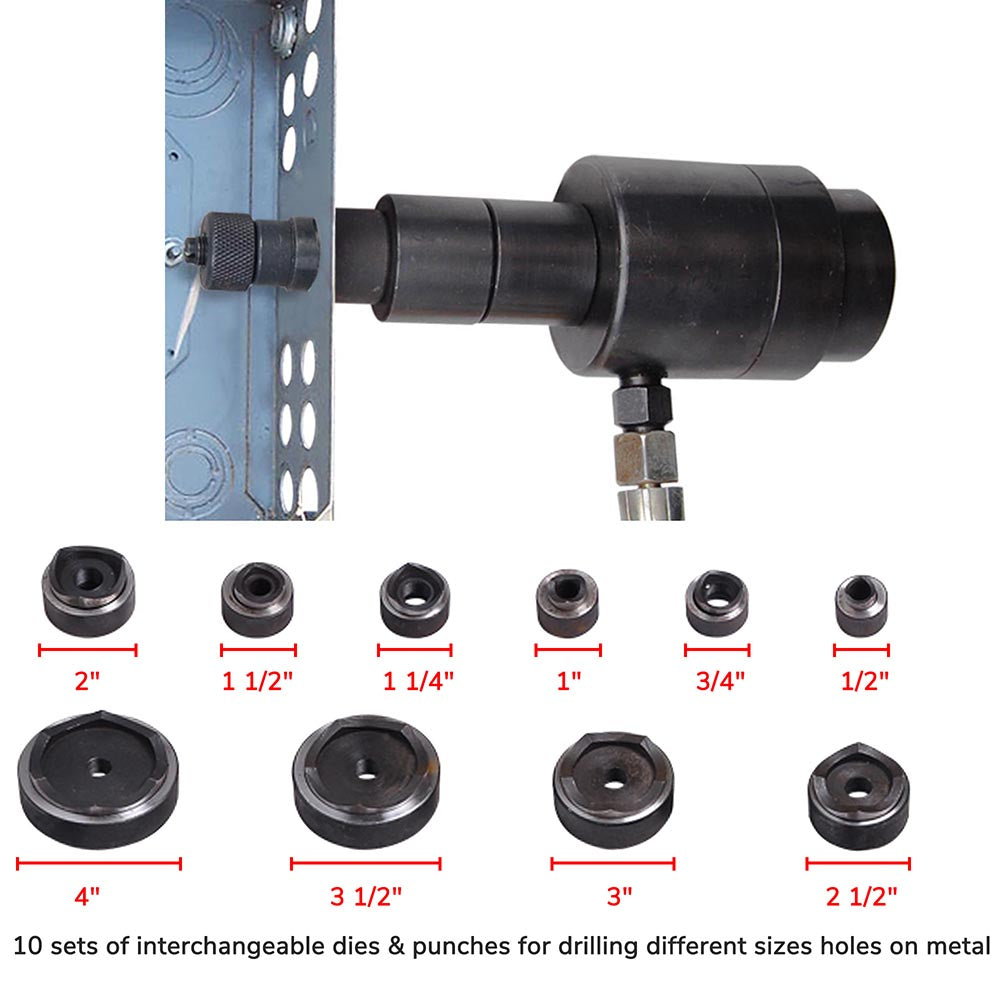

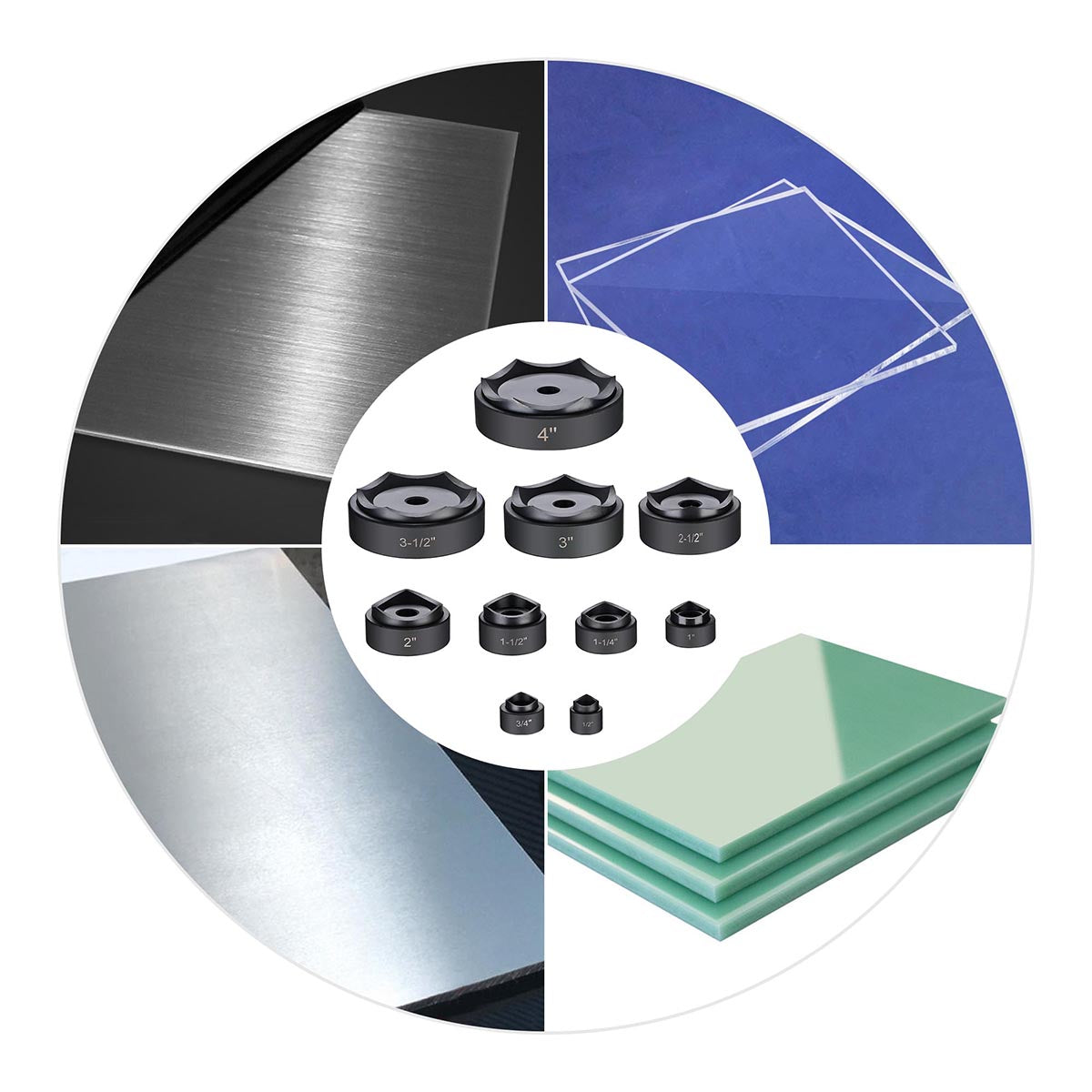

  • 10 Dies & Punches Interchangeable to Meet Different Needs

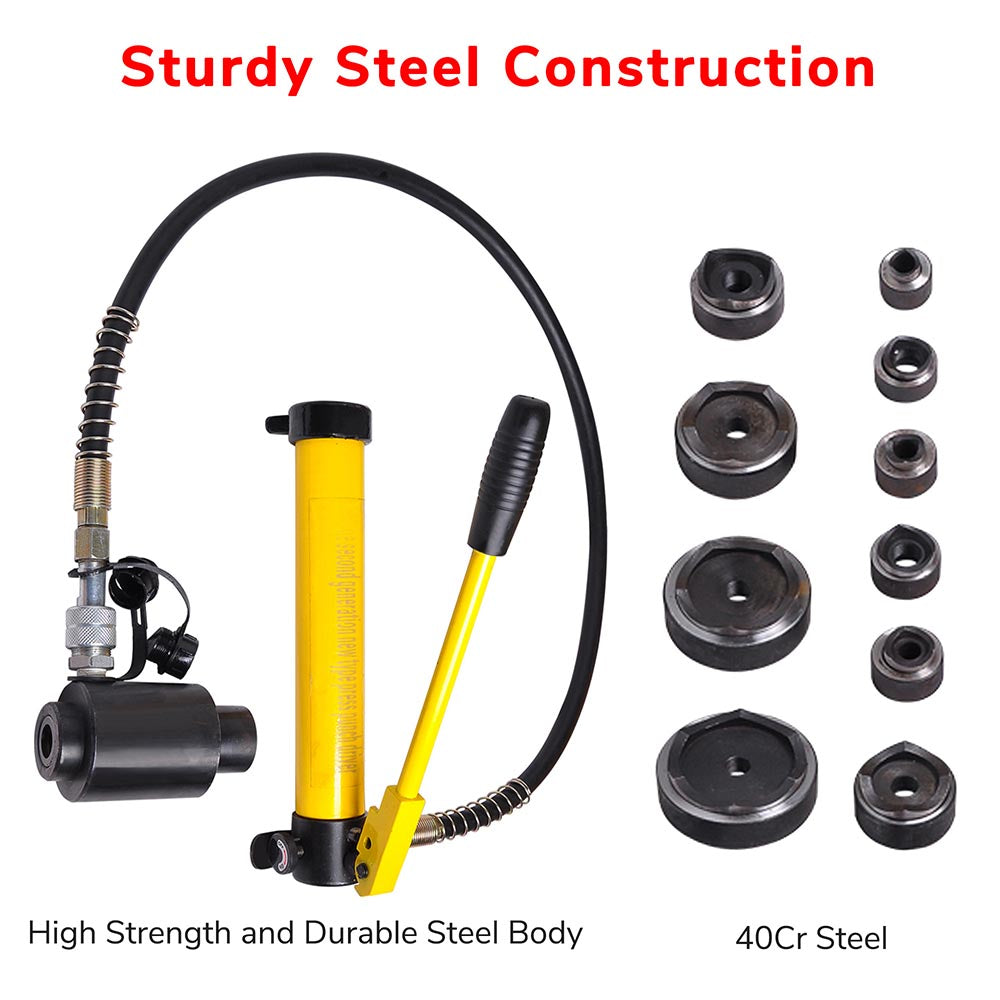

  • 40Cr steel dies and 45# steel pump body for ensuring high strength, sturdiness and durability, stable construction

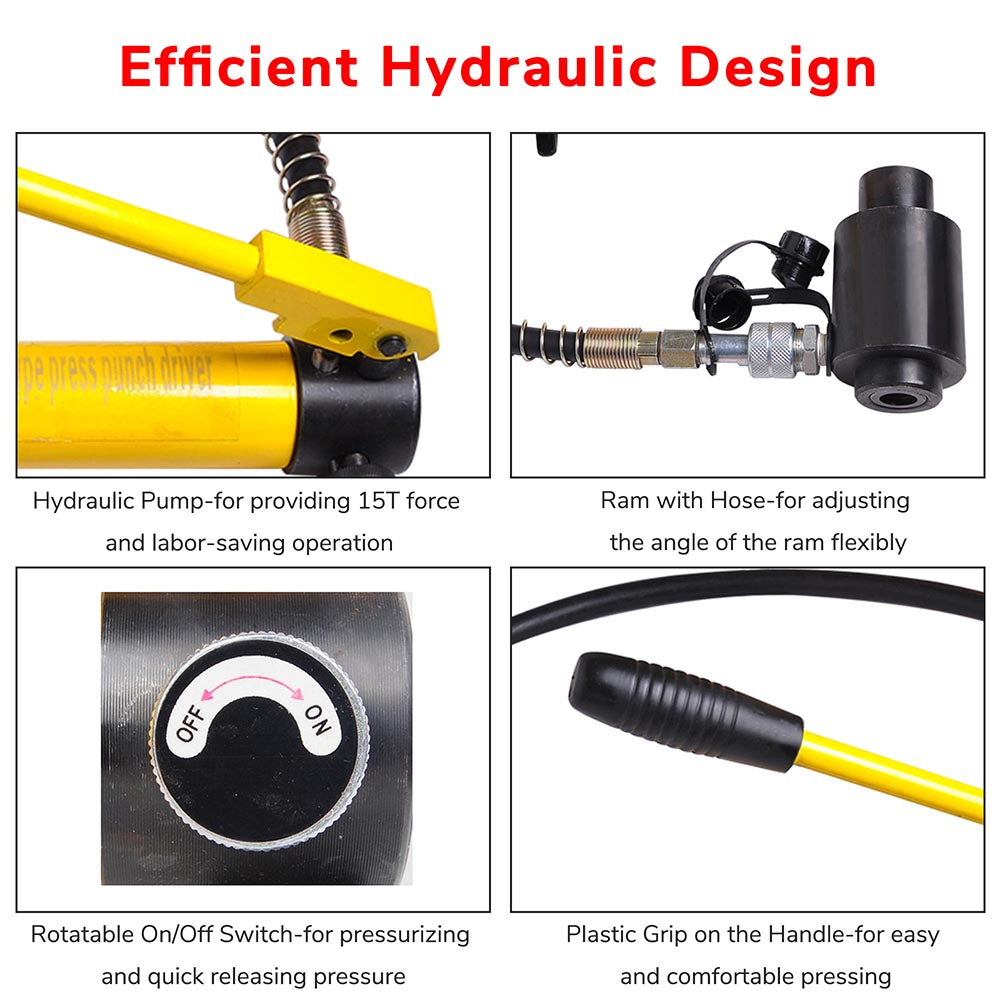

  • Hydraulic mechanism pump produces 15T strong pressure for providing high punching accuracy and fast punching speed which is 10 times much faster than common wrenches, more labor-saving on punching uniform holes; pump with pressure hose for adjusting the angle of the ram flexibly

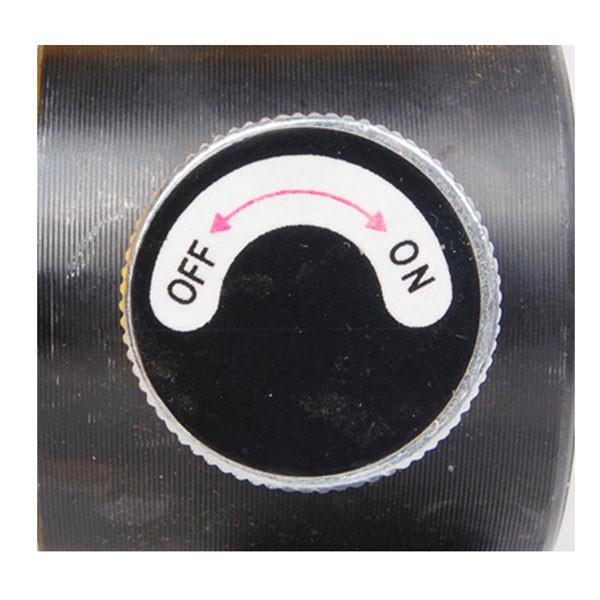

  • Rotatable "ON / OFF" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value, perfect for adding more safety
  • Anti-skid plastic grip at the end of the handle for easy and comfortable pressing & Sturdy and portable metal case with handle and double metal locks for convenient travelling and safe storage

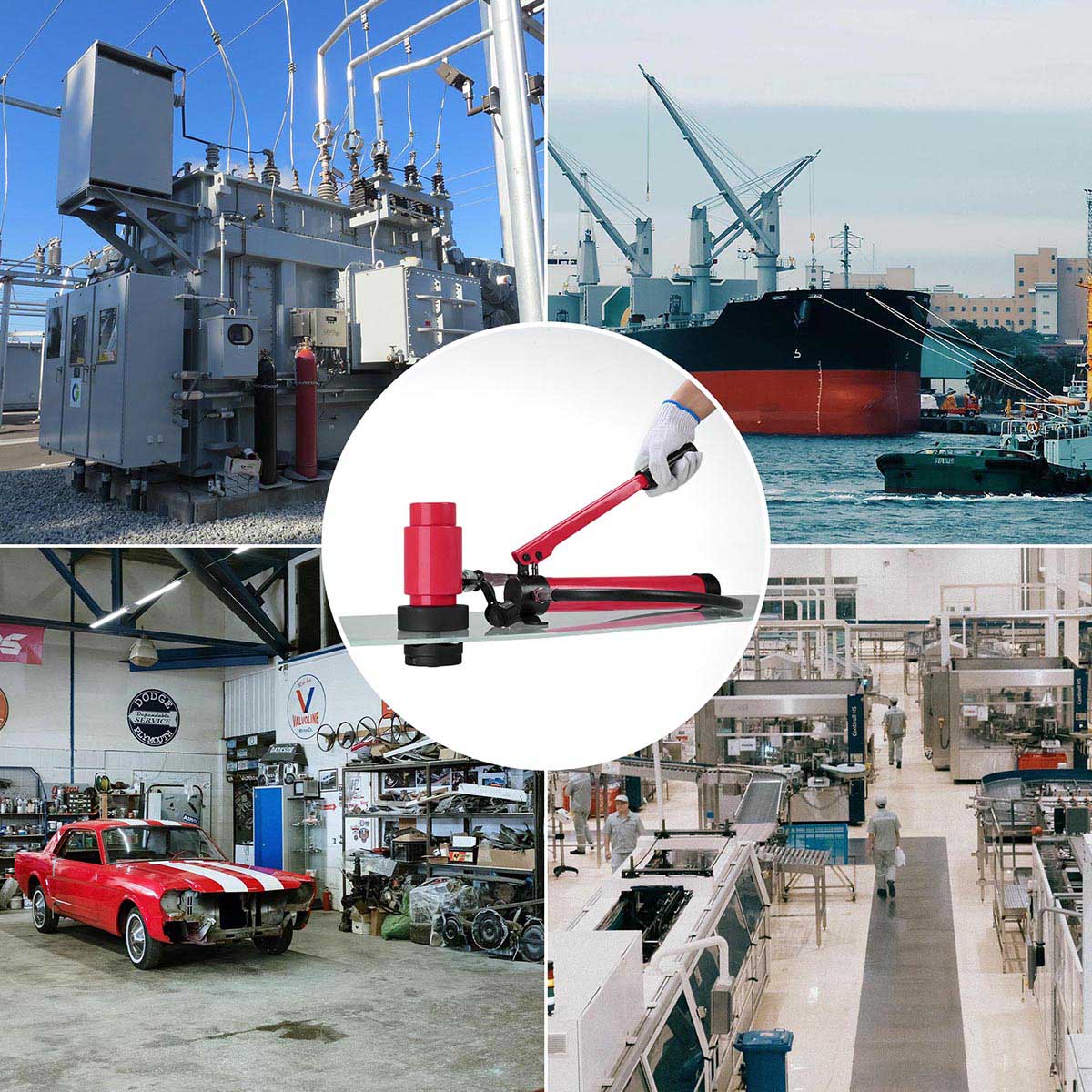

  • Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
QUICKIE GUIDE

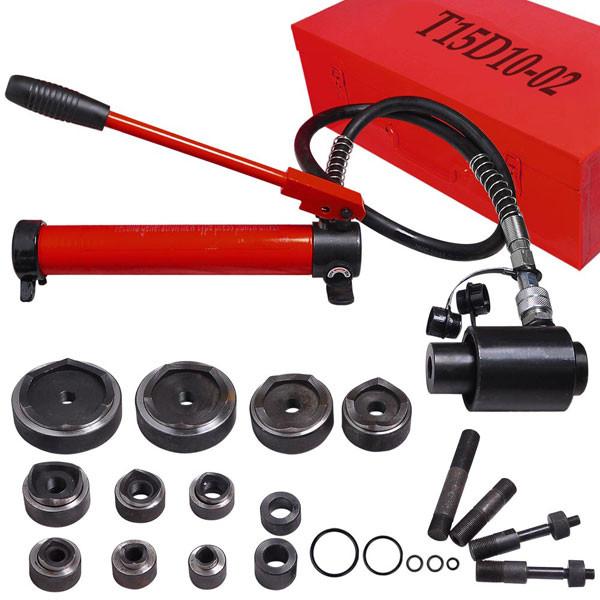

  • Color Options: Yellow/ Red

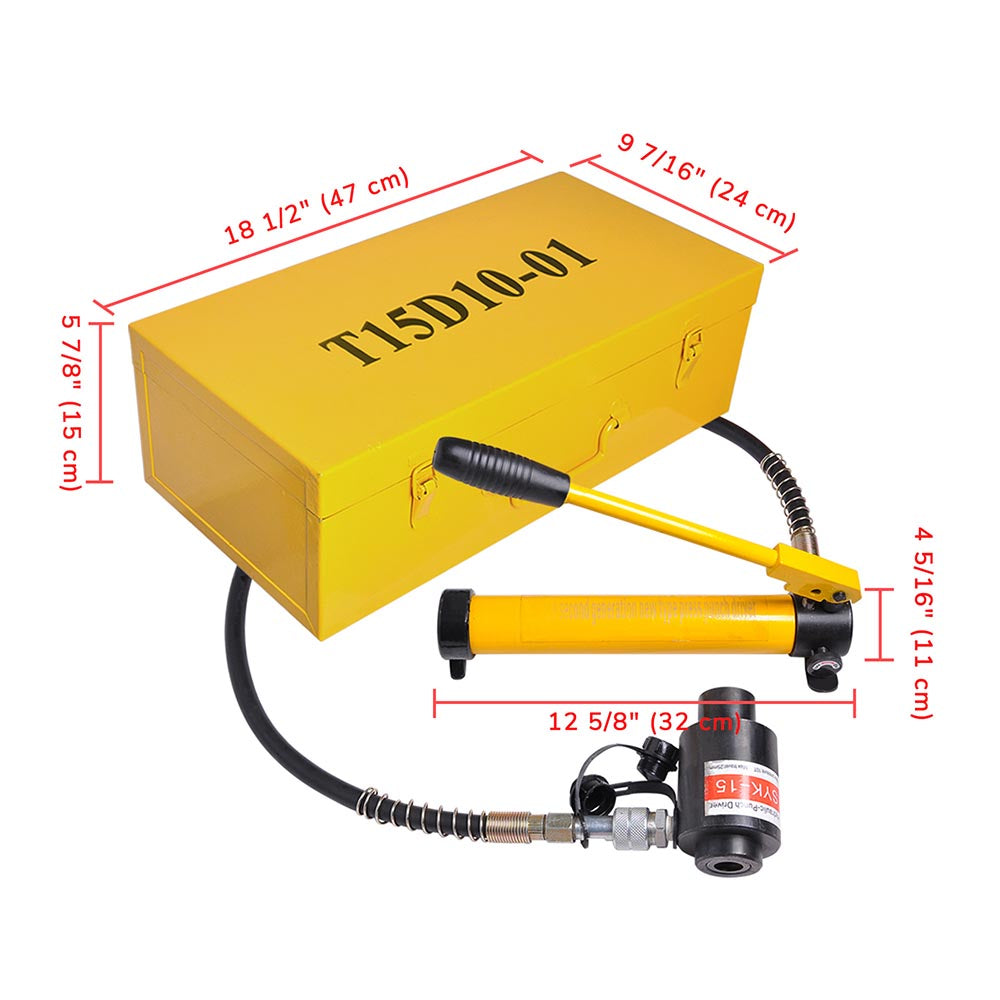

  • Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)

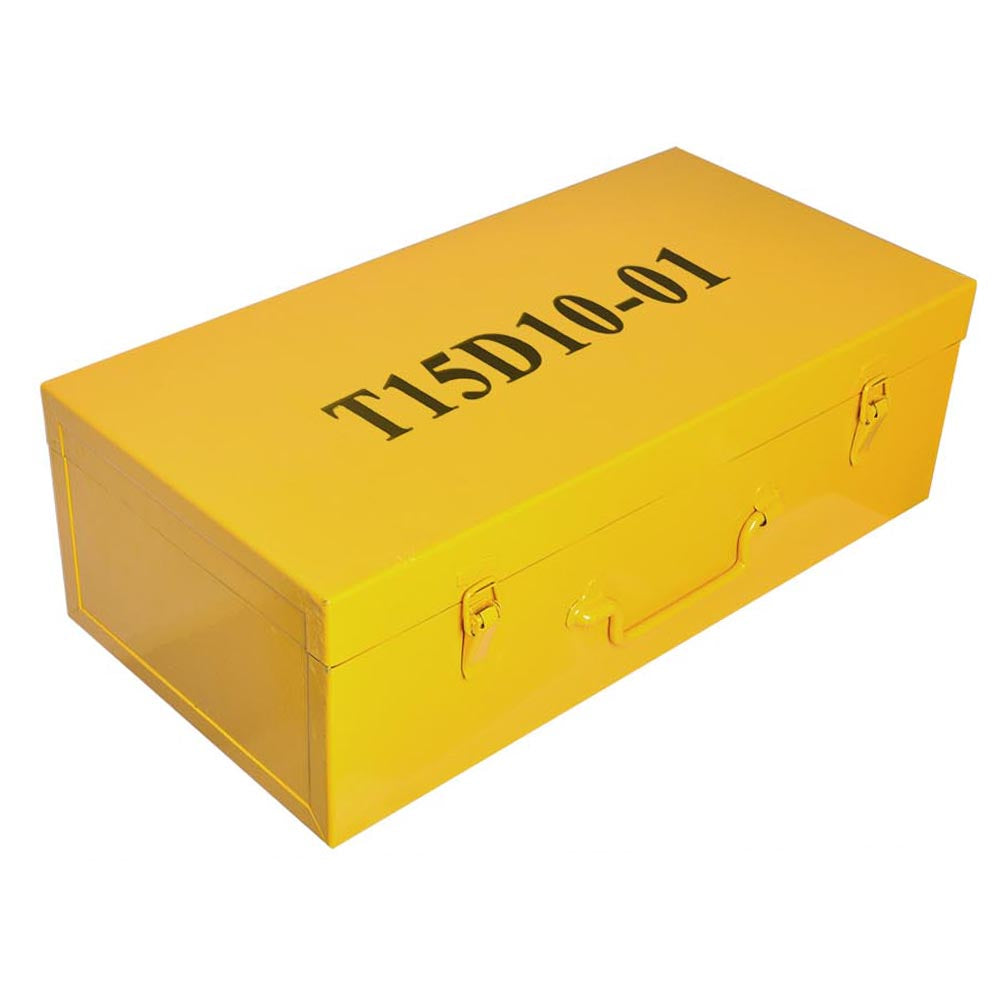

  • Metal Case Dimension(LxWxH): 18 1/2" x  9 7/16" x 5 7/8" (47 x 24 x 15 cm)
  • Max Pressure: 15 ton
  • Max Thickness for Iron: 1/8" (11 gauge)
  • Max Thickness for Stainless Steel: 1/16" (16 gauge)
  • 10pc Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4"
  • Piston Shaft Sizes(LxDia.): 4 3/4" x 3/4" (12 x 1.9 cm), 3 1/8" x 3/4" (8 x 1.9 cm)
  • Draw Stud Size(LxDia.): 4 1/8" x 5/16" (10.5 x 0.78 cm)
  • Hose Length: 50 3/8" (128 cm)
  • Material: 45# Steel, Aluminum Alloy, 40Cr Steel
  • Net Weight: 48.5 Lbs (22 kg)
CORRESPONDING SIZE

    Actual Hole Size

    Dies & Punches Size

    0.885" (22.5mm)

    1/2"

    1.115" (28.3mm)

    3/4"

    1.362" (34.6mm)

    1"

    1.701"(43.2mm)

    1 1/4"

    1.951"(49.6mm)

    1 1/2"

    2.416"(61.5mm)

    2"

    2.914"(74mm)

    2 1/2"

    3.539"(89.9mm)

    3"

    4.044"(102.7mm)

    3 1/2"

    4.544"(115.4mm)

    4"

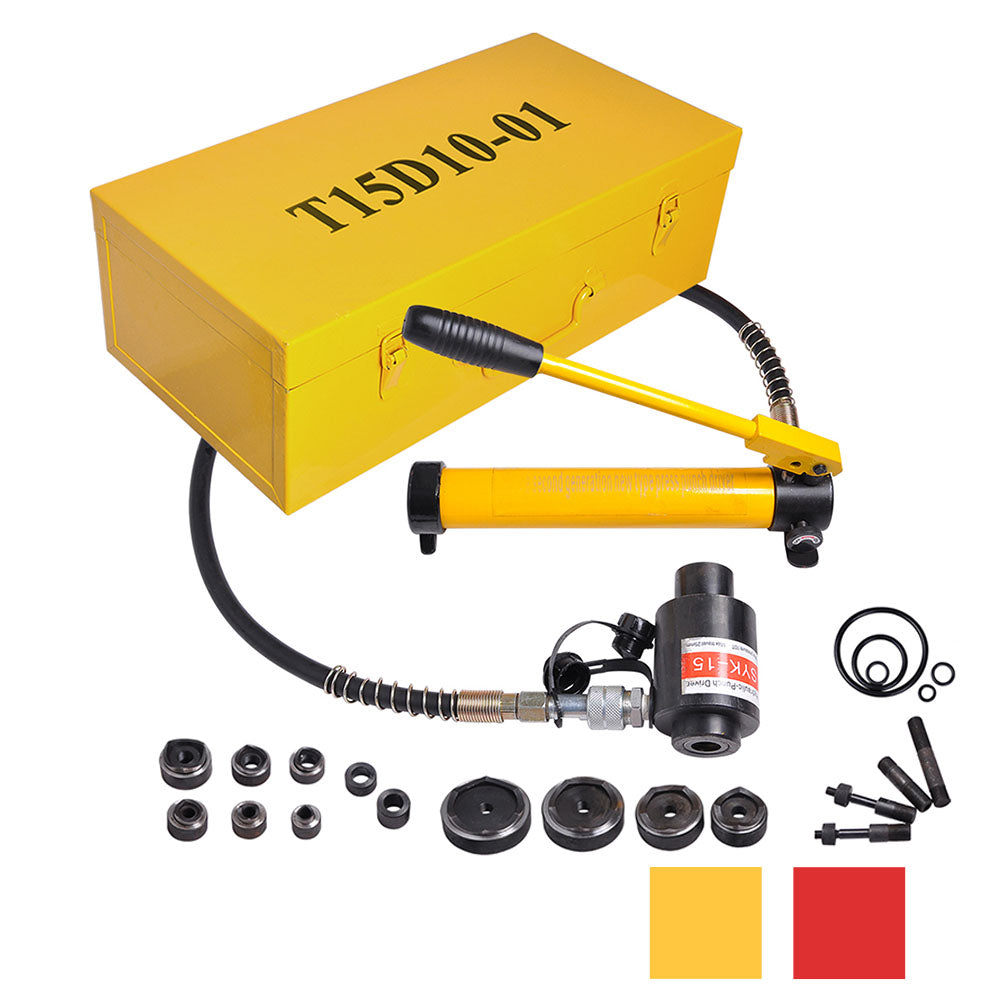

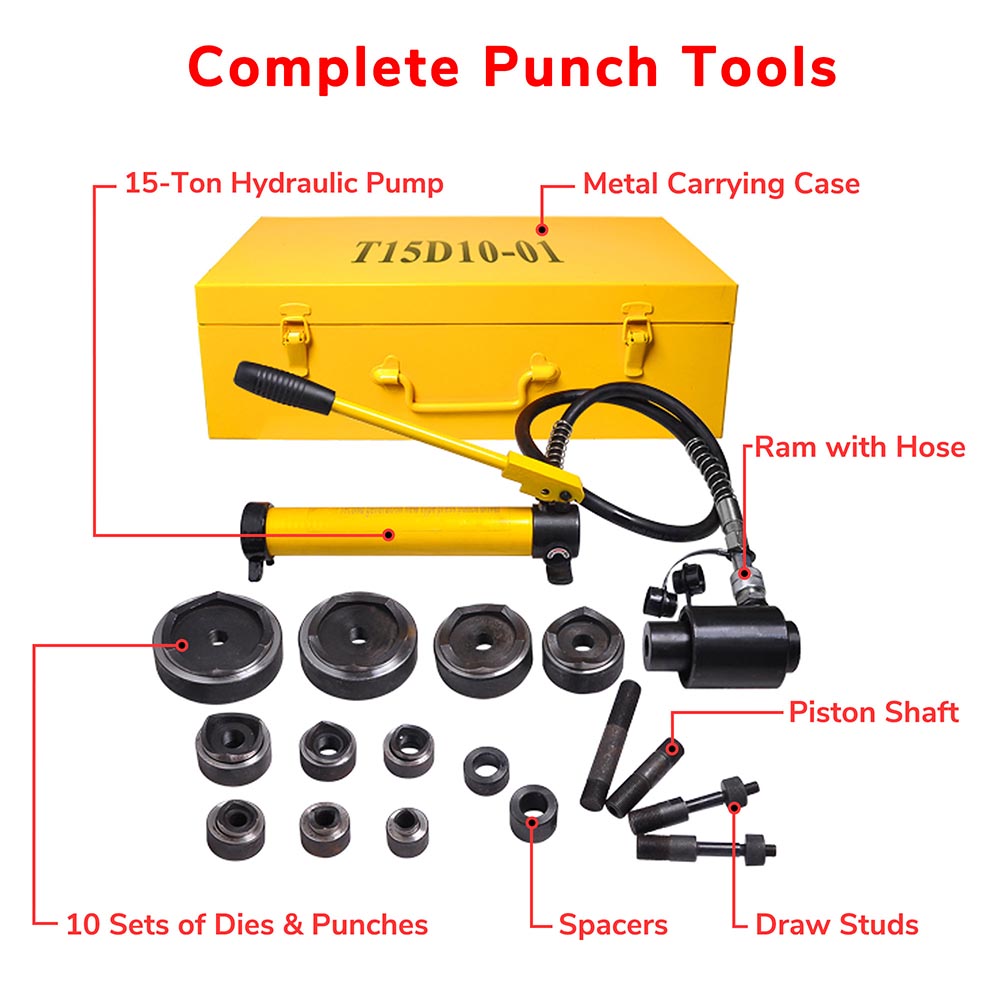

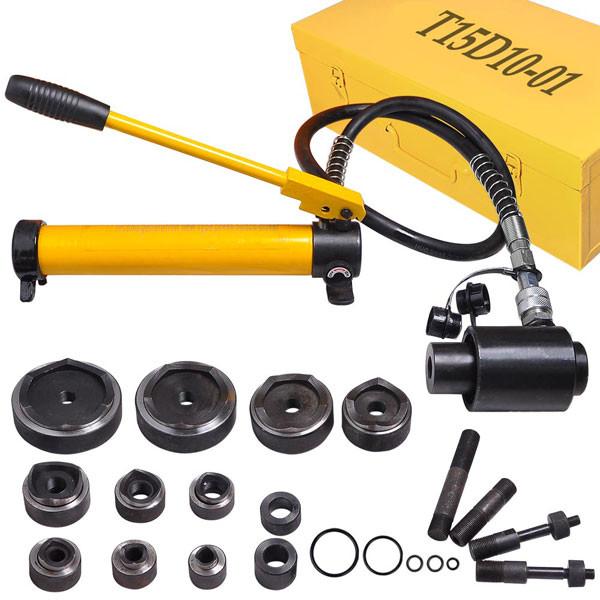

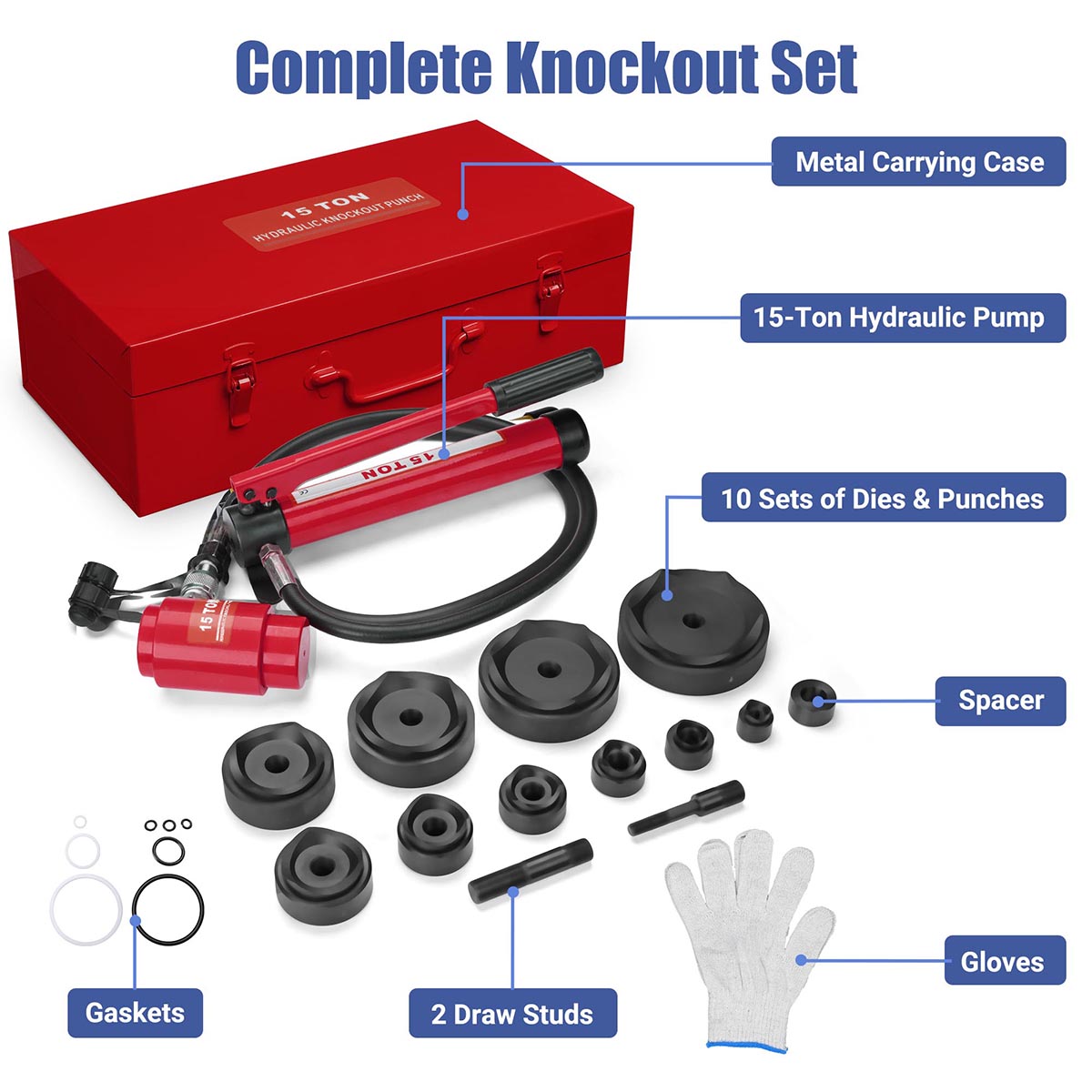

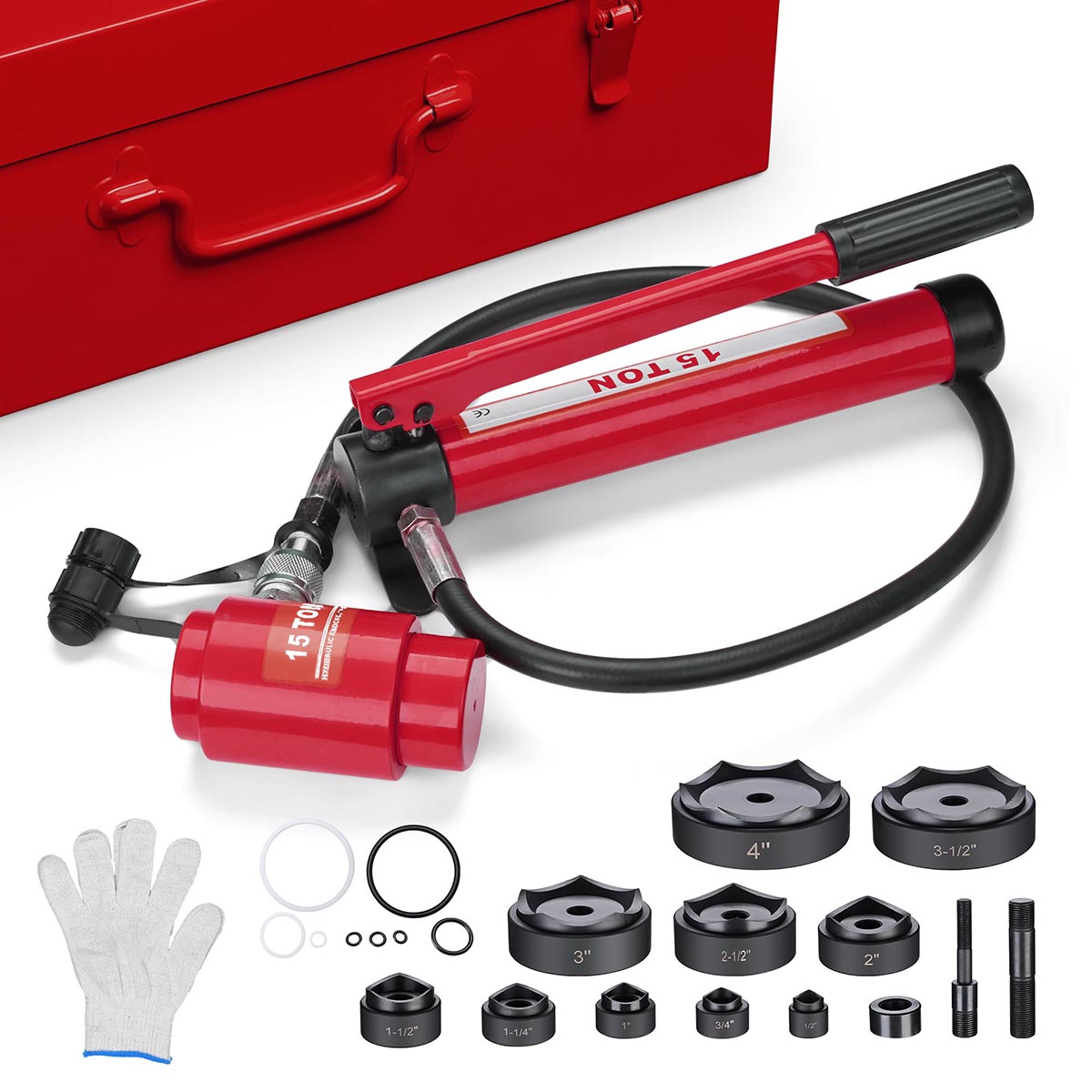

PACKAGE INCLUDE
  • Sealing rings
  • 1 x 15-Ton Pump
  • 1 x Ram with Hose
  • 10 x Dies & Punches
  • 2 x Piston Shafts
  • 2 x Draw Studs
  • 2 x Spacers
  • 1 x Manual
  • 1 x Sturdy Metal Carrying Case
NOTICE

Please do not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
