Description
This completely hydraulic punch driver kit will help you make the perfect hole! Forget the old, wrench-style punches, this one can exert up to 6 tons of pressure and will make any job a breeze! It's designed to punch perfect holes in plastic, aluminum and steel. Just right for maintenance, construction and electrical work!
PRODUCT DETAIL
- Complete Punch Tools
- Features 1pc 6-ton pump, 2pcs draw studs, 1 set of spacers and 6 sets of interchangeable dies & punches for conduit fitting size of 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2", can drill different sizes holes on stainless steel, aluminum, steel, plastic, etc
- 1/8" (11 gauge) max punching thickness for steel and 1/16" (14 gauge) for stainless steel

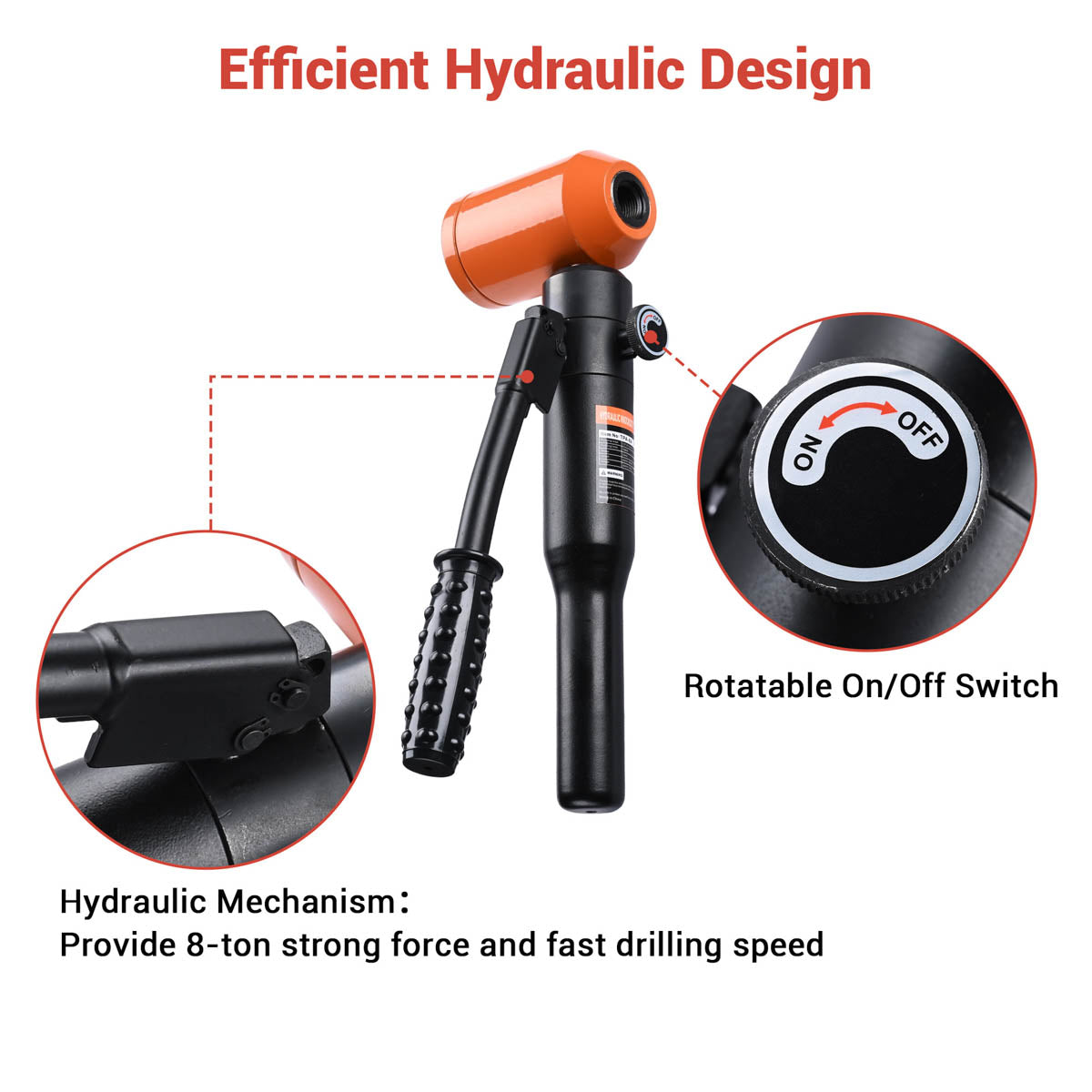

- Efficient Hydraulic Design
- Hydraulic mechanism of the pump produces a strong force of 6T (59KN) for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches
- Rotary "on/off " knob on the pump for quick releasing pressure, adding more safety
- 360 Degrees rotatable punch head for meeting your punching needs, you can adjust it flexibly
- Sturdy Metal Construction - 40Cr steel dies and aluminum alloy pump body for ensuring high strength, sturdiness and durability

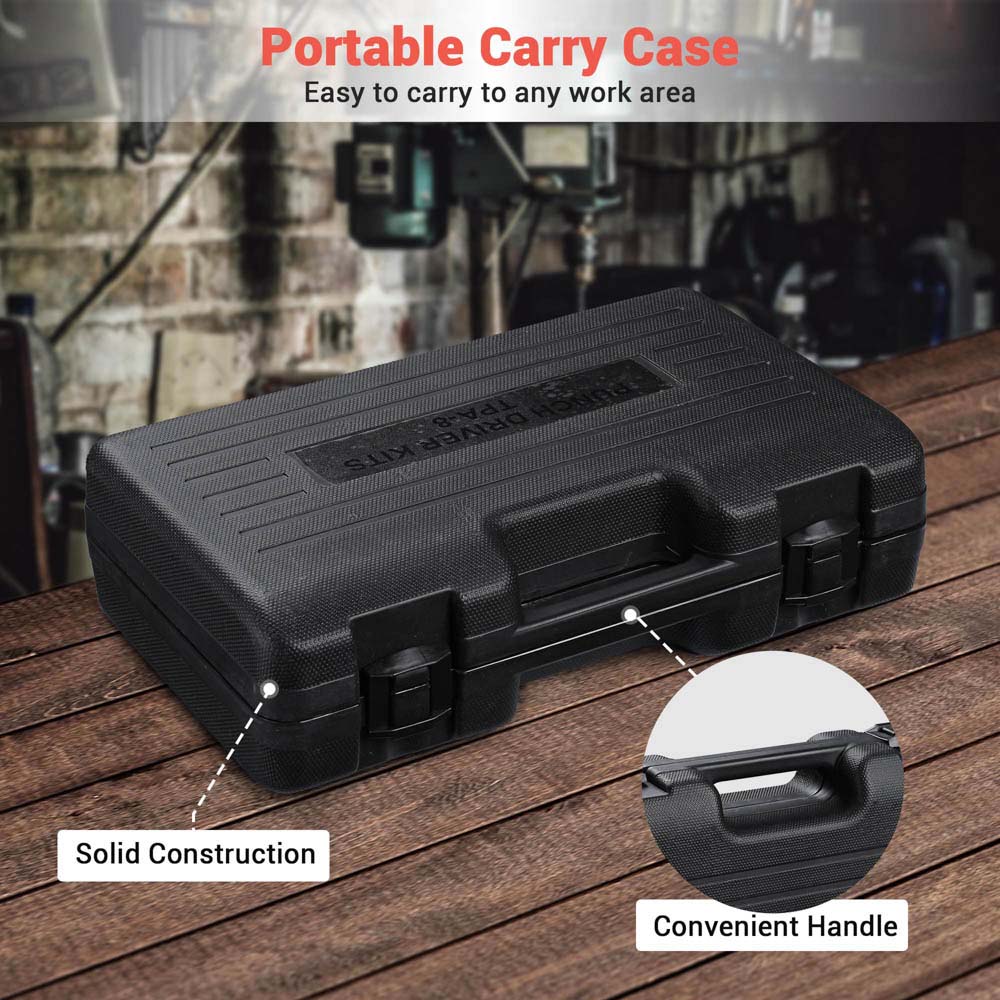

- Blow-molded case with handle for convenient storage and keeping all accessories in place
- Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
SPECIFICATIONS
- Pump Dimension(LxWxH): 13 3/4" x 7 1/16" x 2 9/16" (35 x 18 x 6.5 cm)
- Extendable Handle Range: 2 3/8" to 8 11/16" (6 to 22 cm)
- Plastic Case Dimension(LxWxH): 16 1/8" x 9 13/16" x 4 5/16" (41 x 25 x 11 cm)
- 6 Punch Dies: 1/2"(22.5mm), 3/4"(28.3mm), 1"(34.6mm), 1 1/4"(43.2mm), 1 1/2"(49.6mm), 2"(61.5mm)
- Max Pressure: 6 ton
- Stroke: 7/8" (22 mm)
- Material: 45# Steel, Aluminum Alloy, 40Cr Steel
- Max Thickness for Steel: 1/8" (11 gauge)
- Max Thickness for Stainless Steel: 1/16" (14 gauge)
- Net Weight: 12.6 Lbs (5.7 kg)

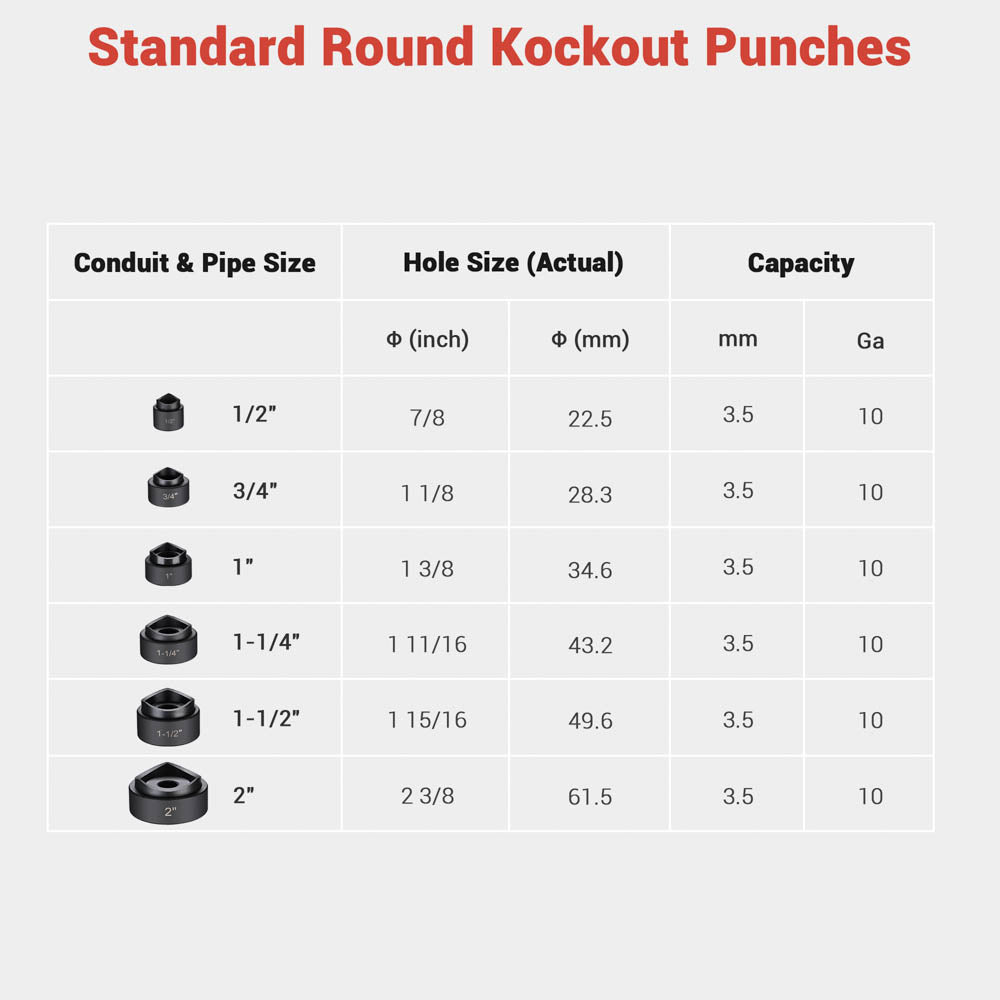

CORRESPONDING SIZE
|
Actual Hole Size |
Dies & Punches Size |
|
0.9" |
1/2" |
|
1.1" |
3/4" |
|
1.3" |
1" |
|
1.7" |
1 1/4" |
|
1.9" |
1 1/2" |
|
2.4" |
2" |

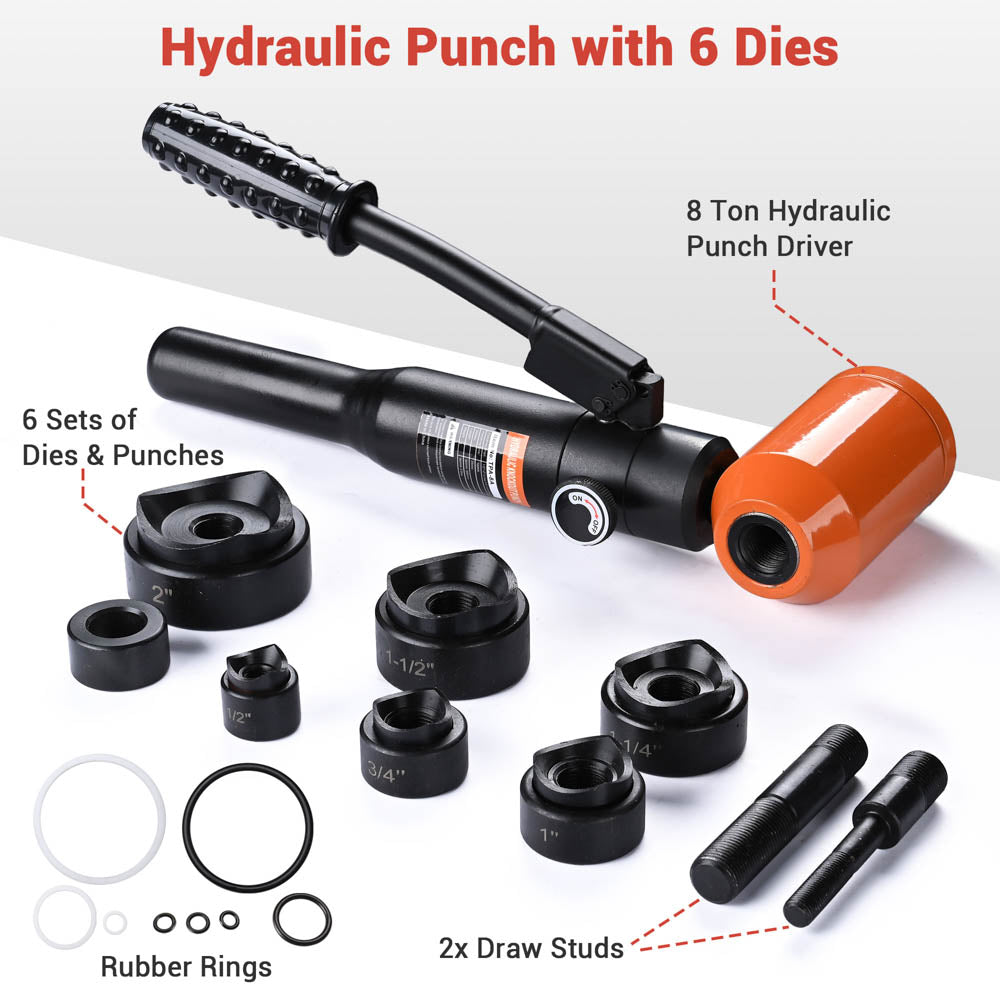

PACKAGE CONTENTS
- 1 x 6-ton pump
- 6 Sets of Dies & Punches
- 2 x draw studs
- 1 Set of Spacer
- 1x Plastic Carrying Case
- 1x Manual
NOTICE: Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram.
