Description
This hydraulic crimper packs 10 tons of pressure and has a total of 9 dies! You'll be able to easily crimp butt connectors and wires. It's capable of crimping 12 to 2/0 size aluminum and copper wire, lugs and compressible battery terminal ends, and will be a great fit for a wide variety of crimping jobs!
SPECIFICATIONS
- Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters

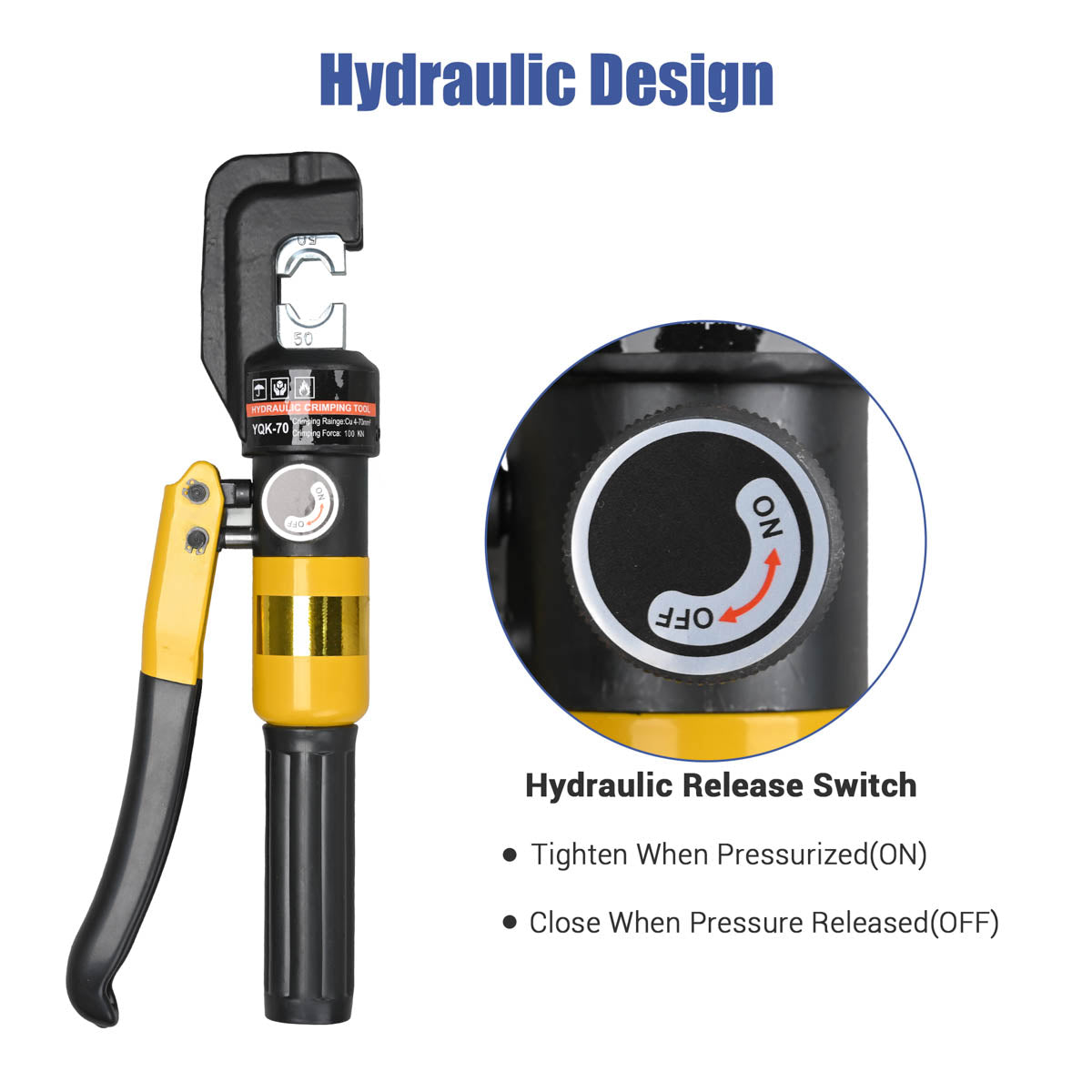

- Hydraulic Design

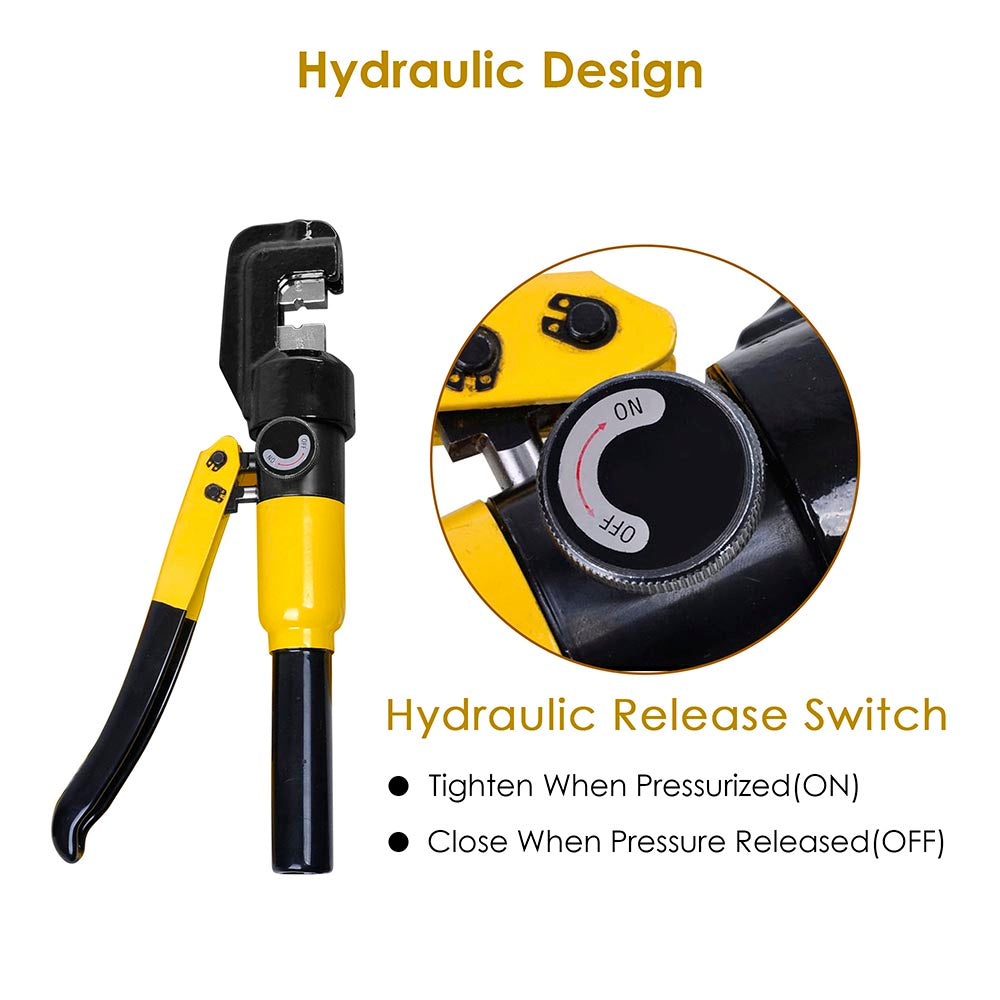

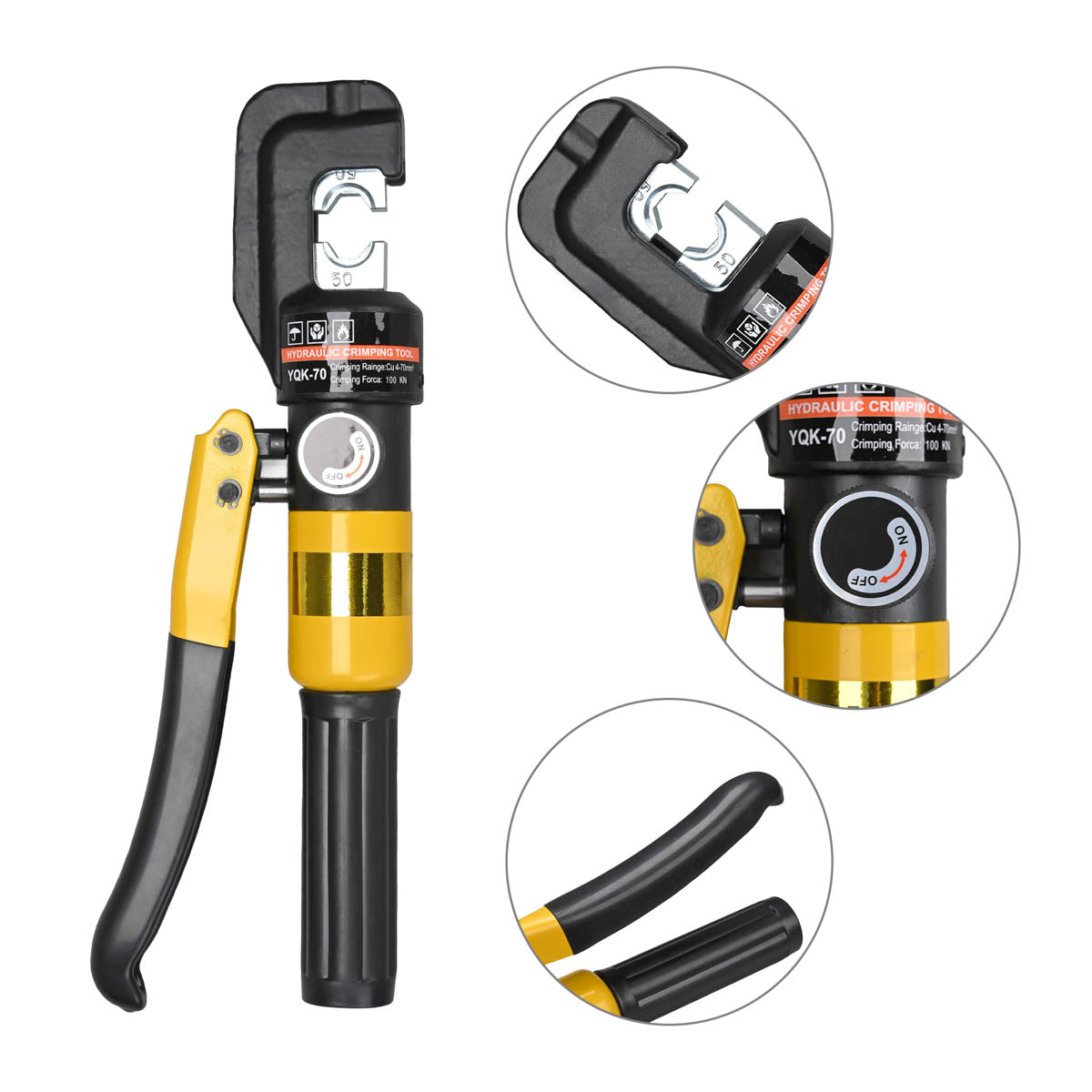

- Providing 10-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
- Hydraulic crimper is much easier than using a hand crimping

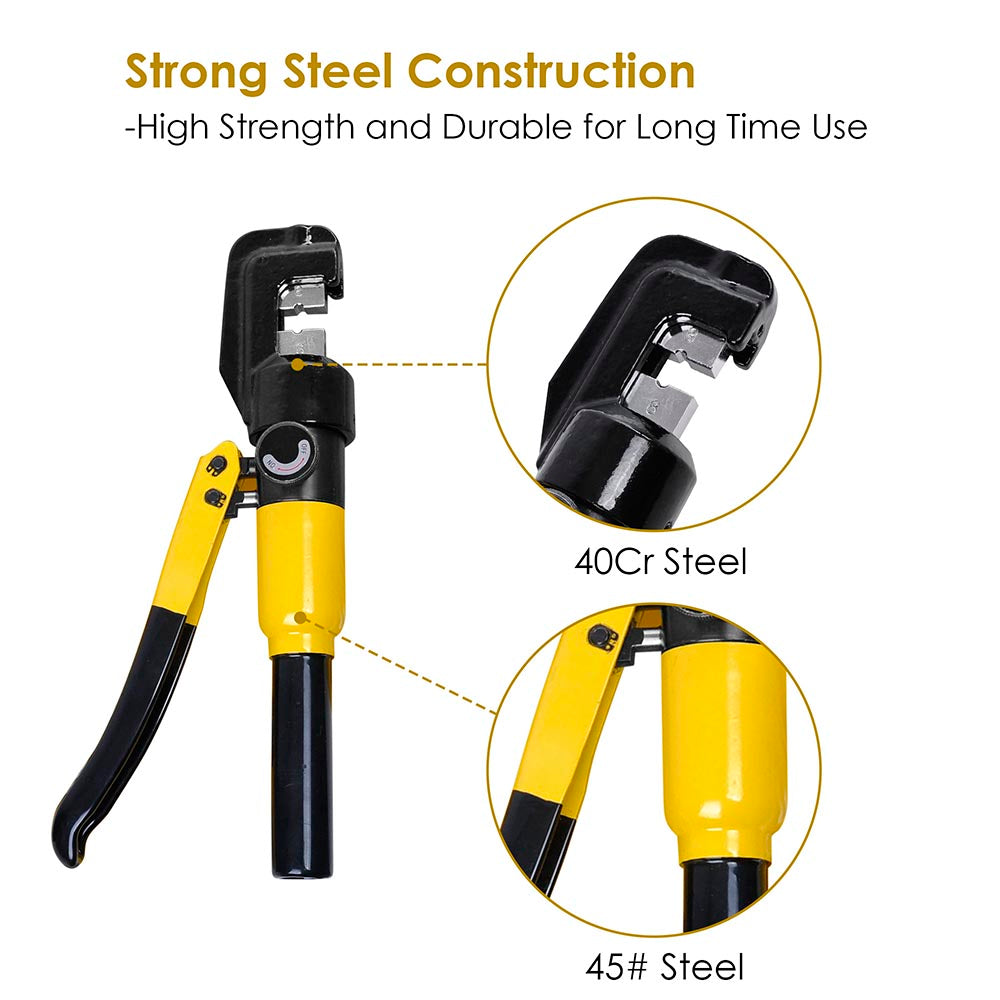

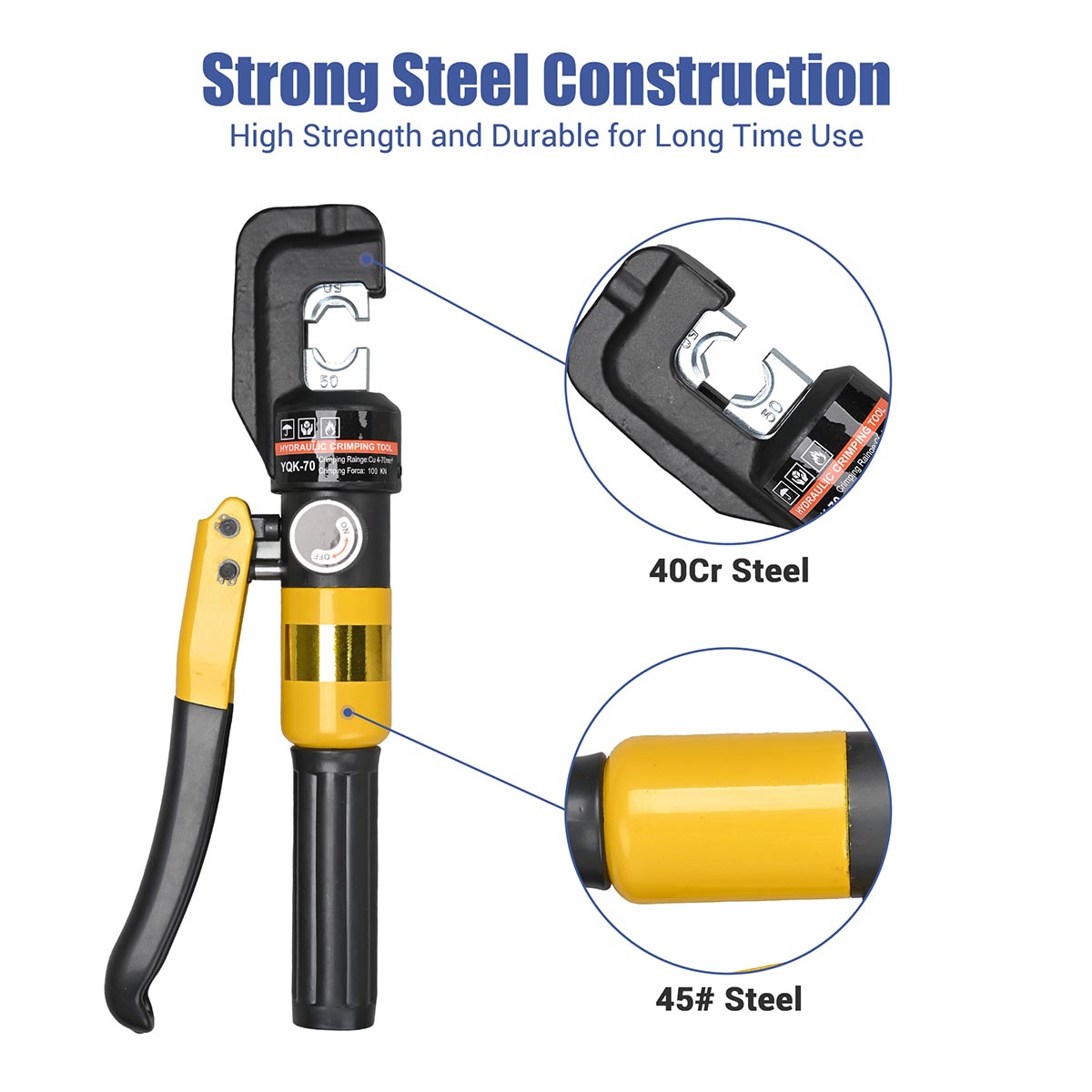

- Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
- Convenient & Portable

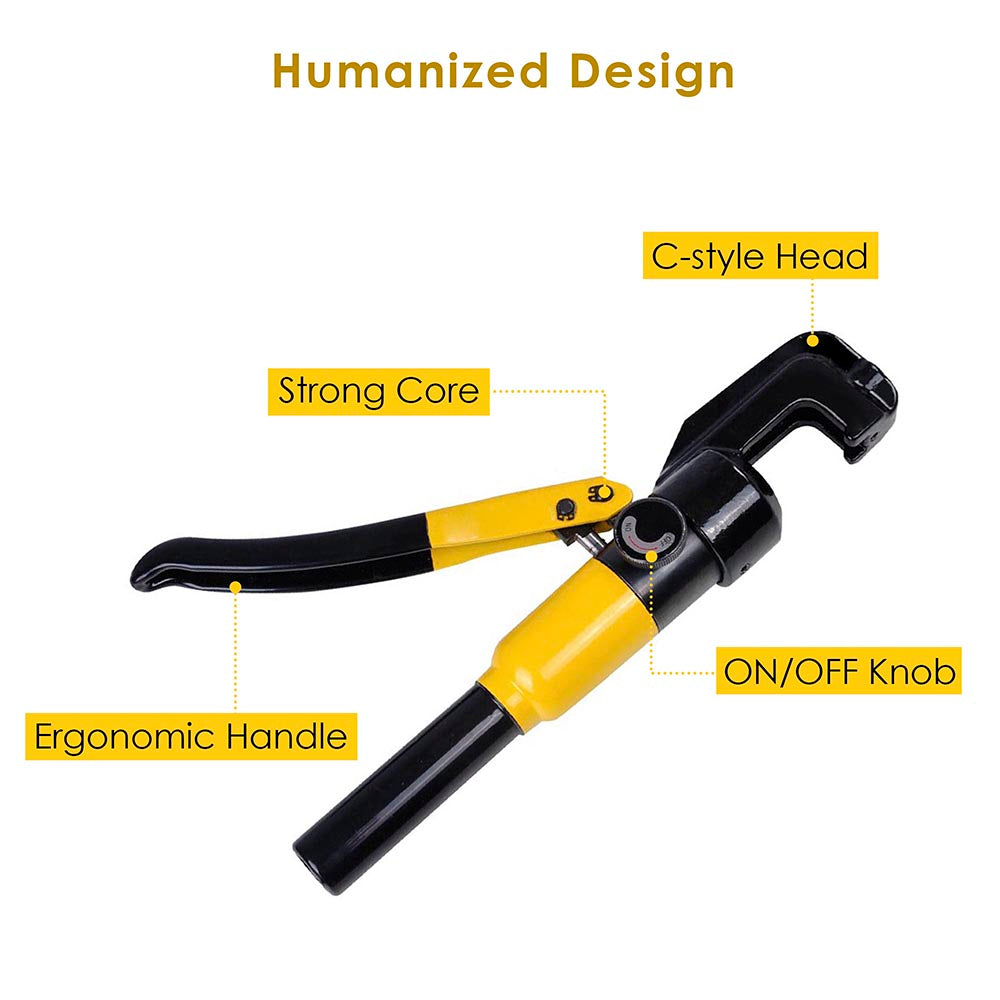

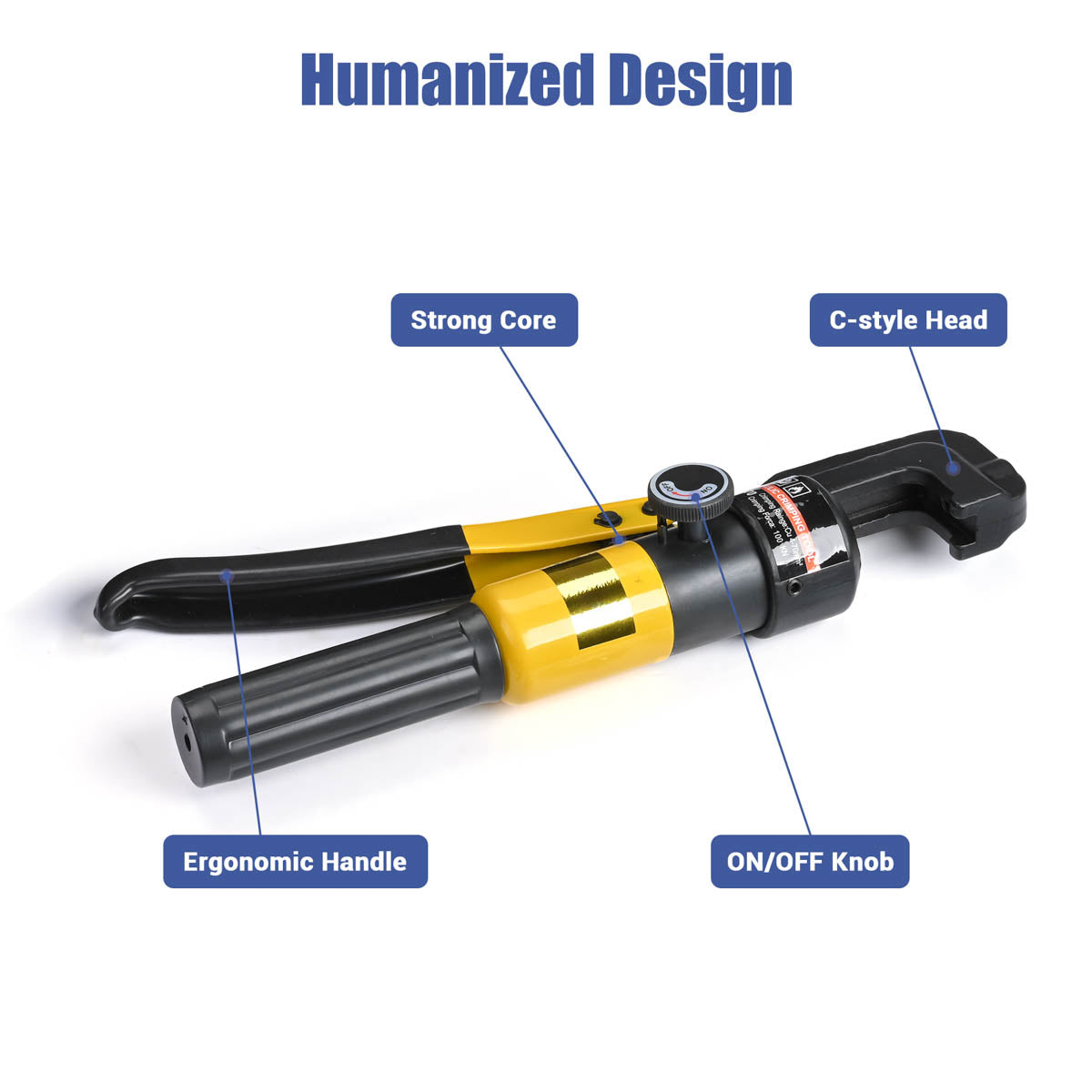

- C-style head for easy changing the dies and fixing the wire in position
- Long ergonomic handle for convenient and labor-saving operation

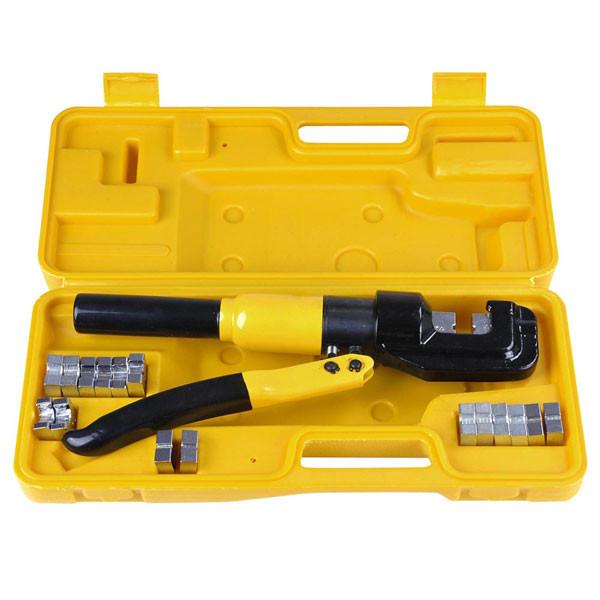

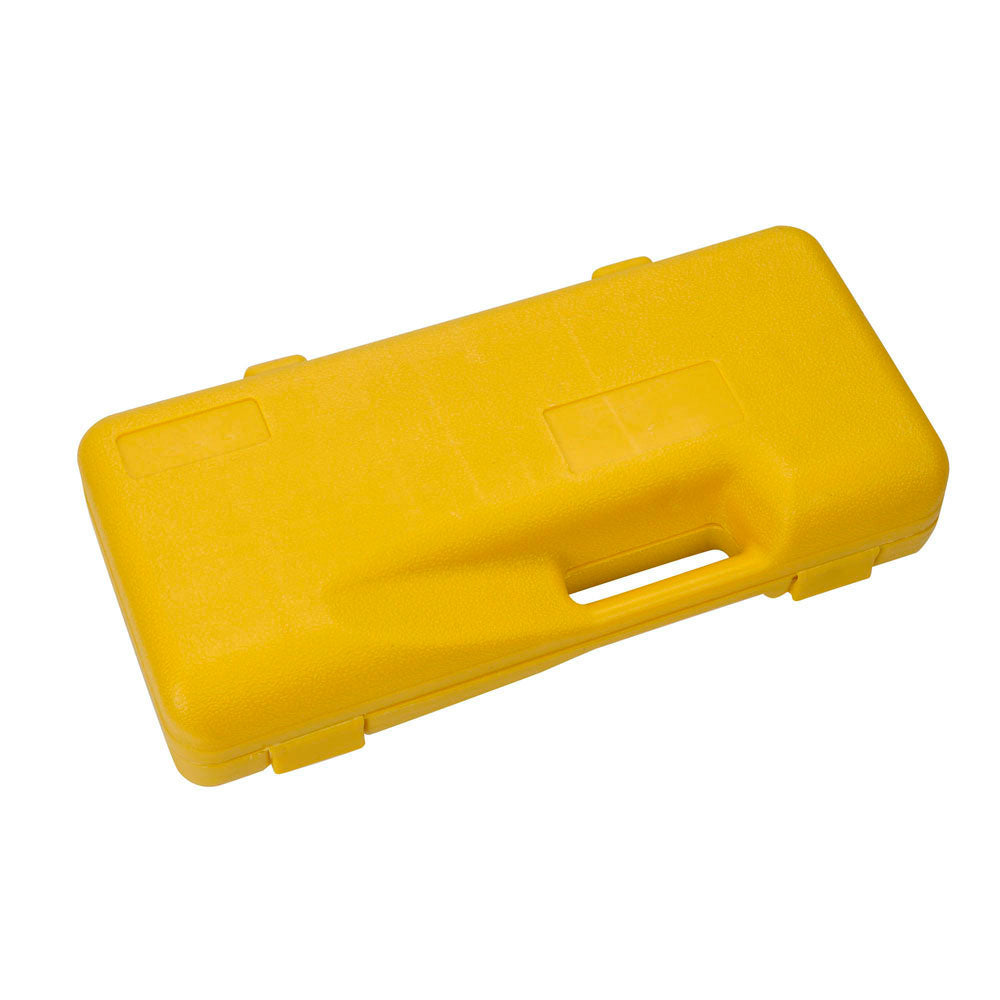

- Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place
- Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire
QUICKIE GUIDE:
- Max pressure: 10 Ton
- Stroke Capacity: 3/8" (10mm)

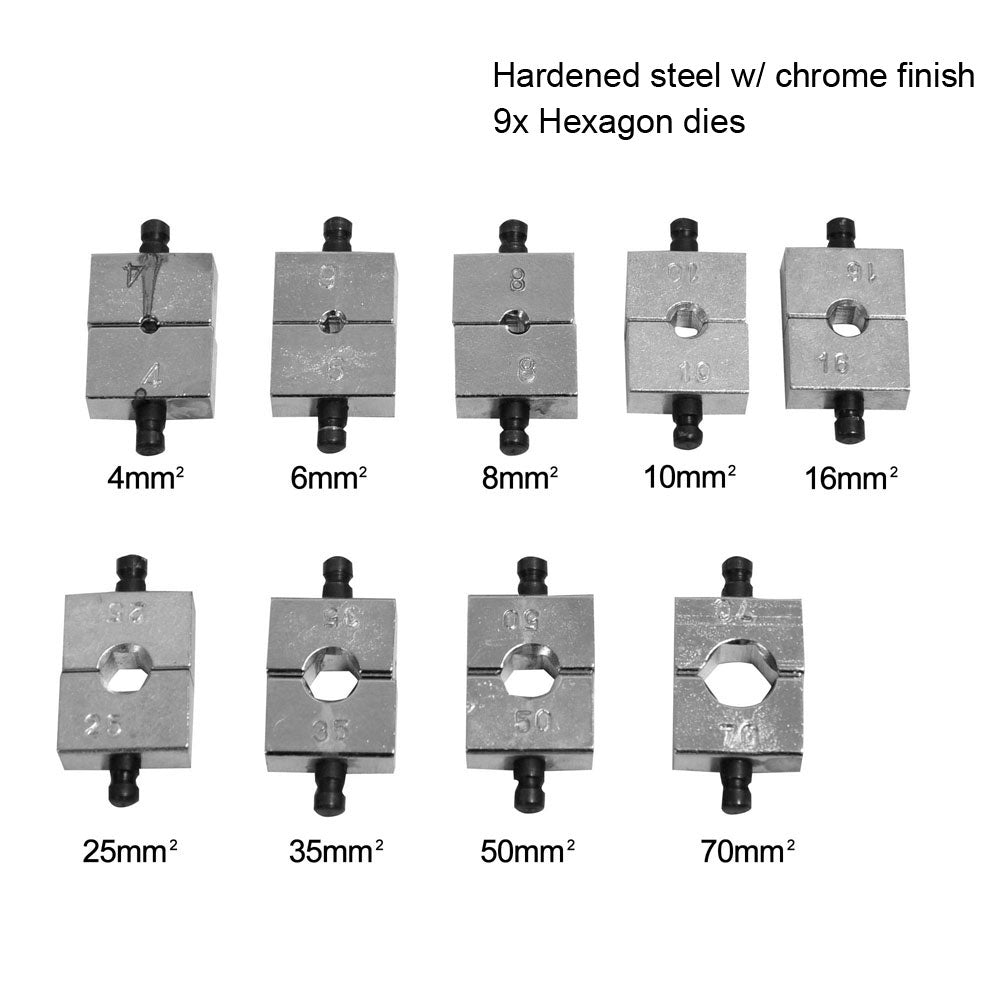

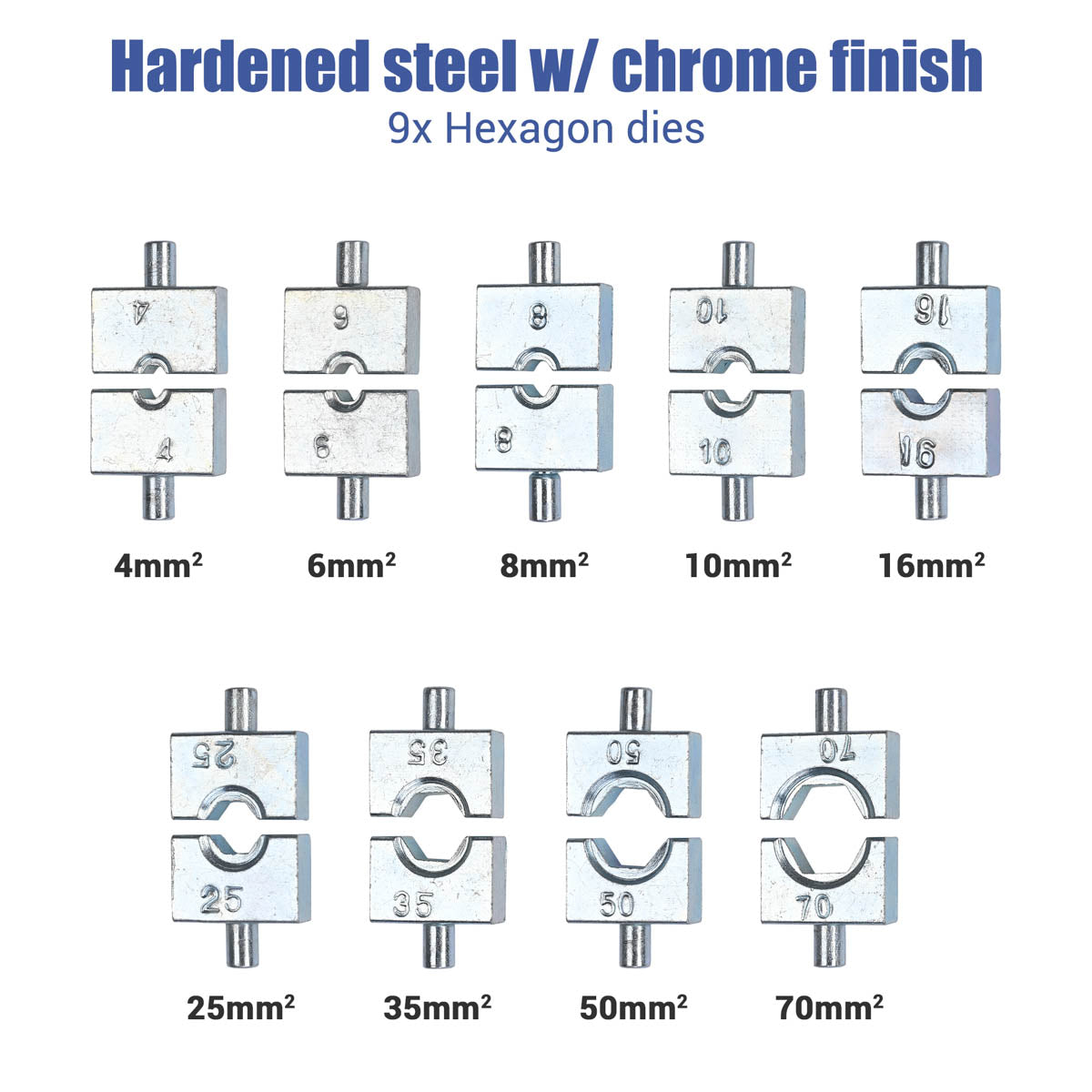

- 9x dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm2

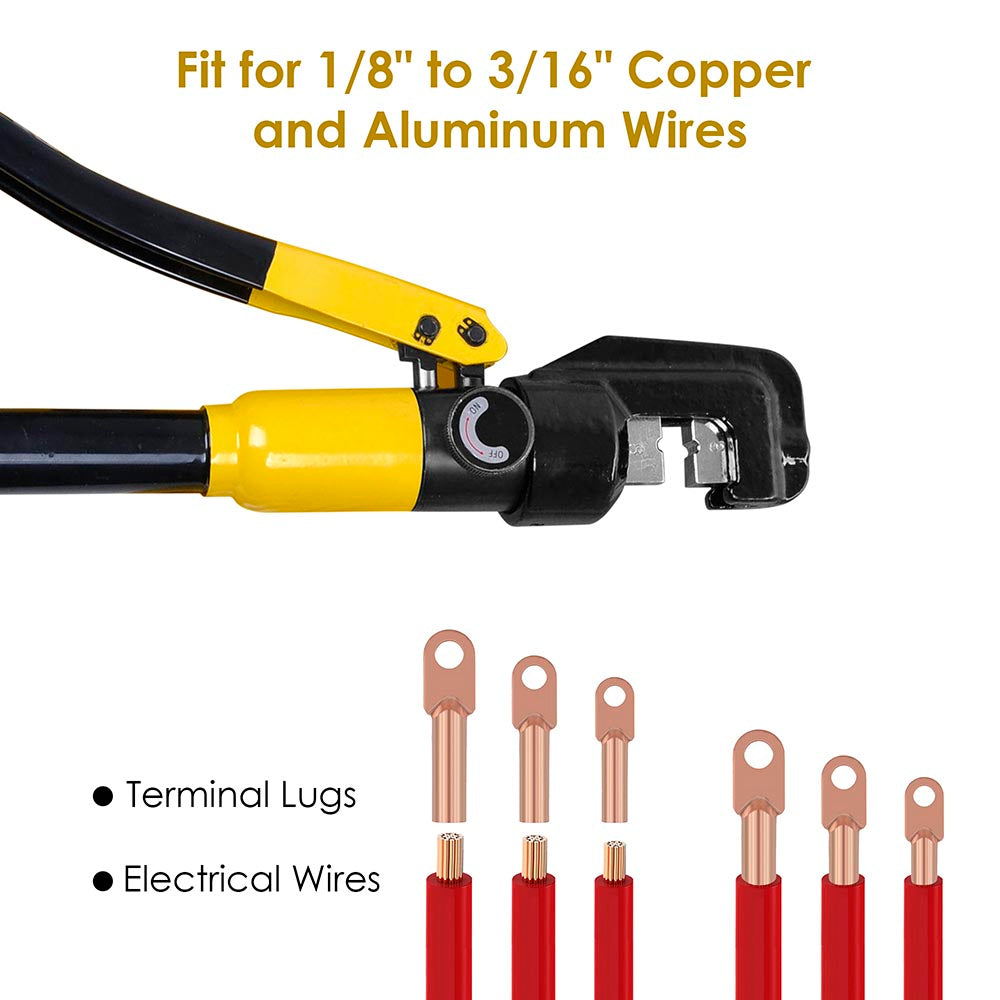

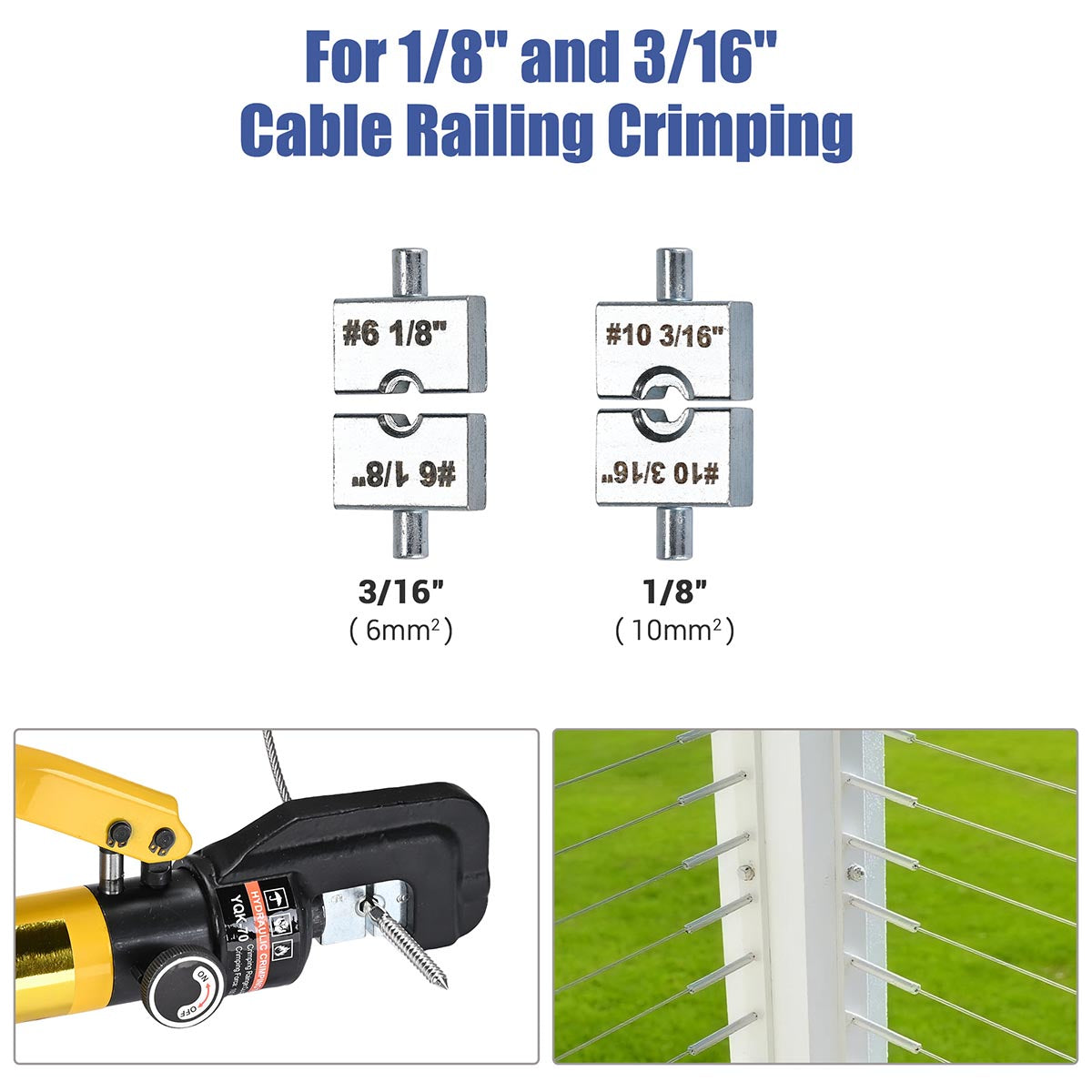

- Fits For: 1/8" to 3/16" (12 AWG to 2/0 AWG) copper and aluminum wires
- Case dimension: 13 3/4"L x 6 1/4"D x 3 1/4"H

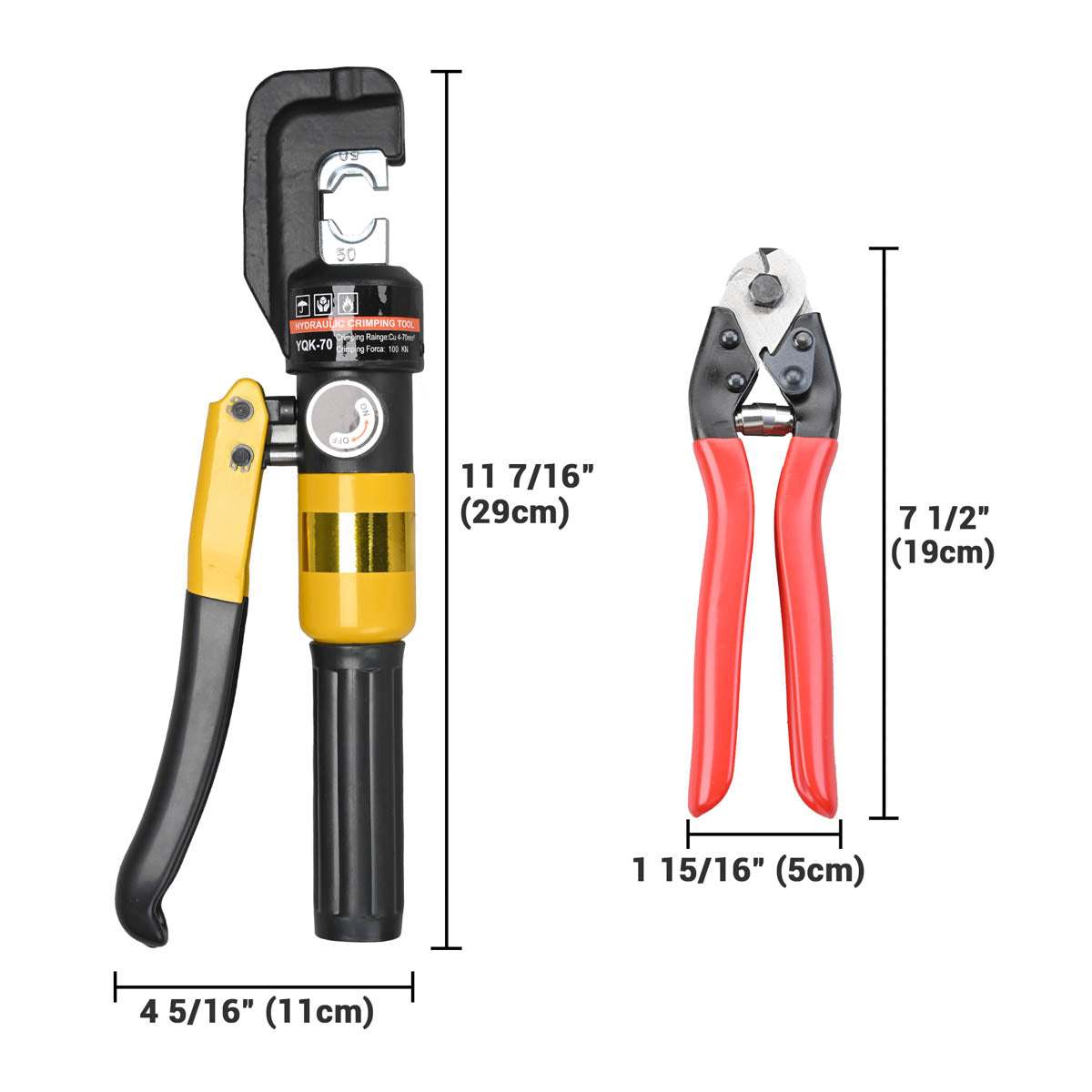

- Length: 12 3/16" (31 cm)
- Material: 45# Steel, 40Cr Steel
- Net Weight: 5.2 Lbs (2.37 kg)
Reference:
|
AWG |
MM2 |
|
12 |
4 |
|
10 |
6 |
|
10 - 8 |
8 |
|
8 |
10 |
|
6 |
16 |
|
4 |
25 |
|
2 |
35 |
|
1/0 |
50 |
|
2/0 |
70 |

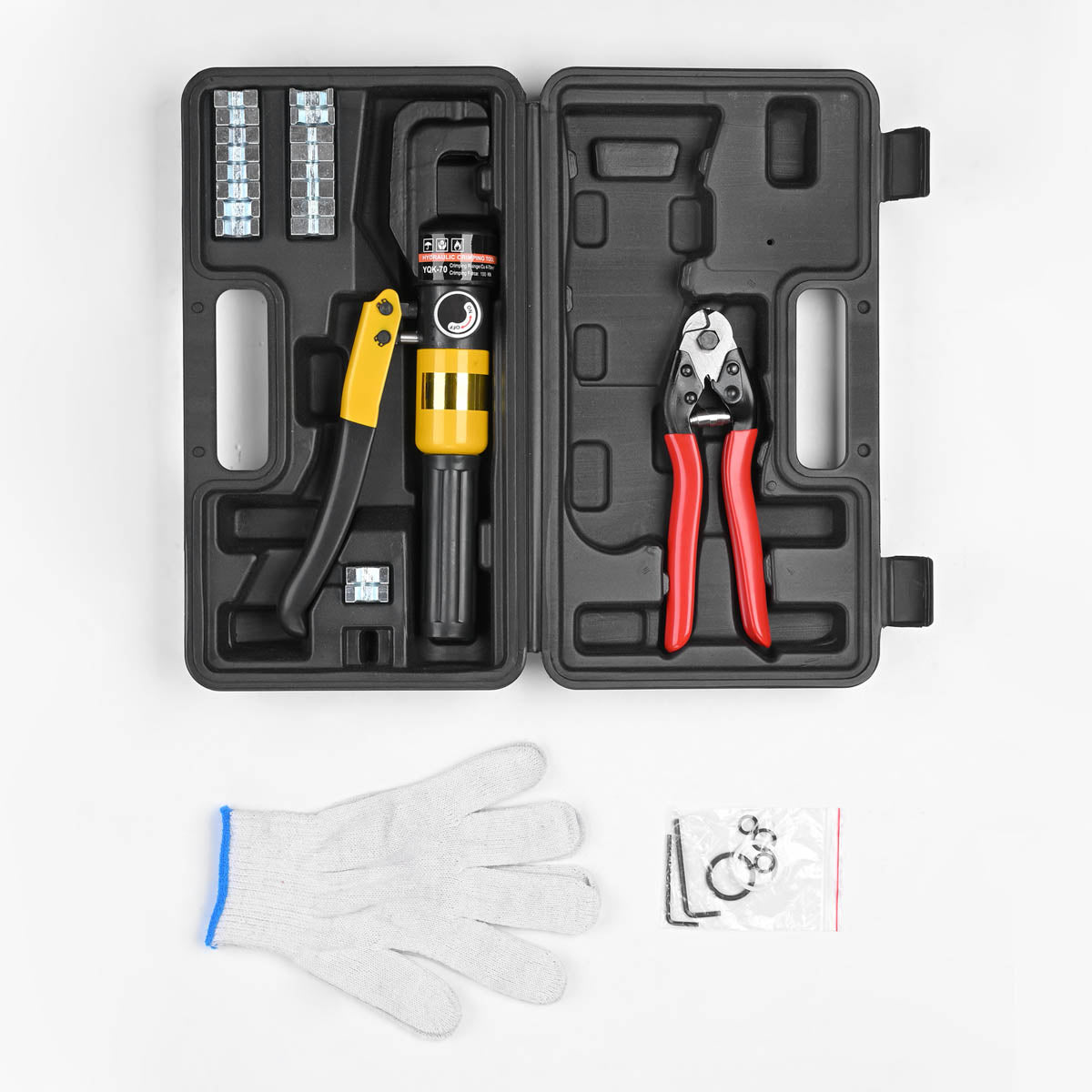

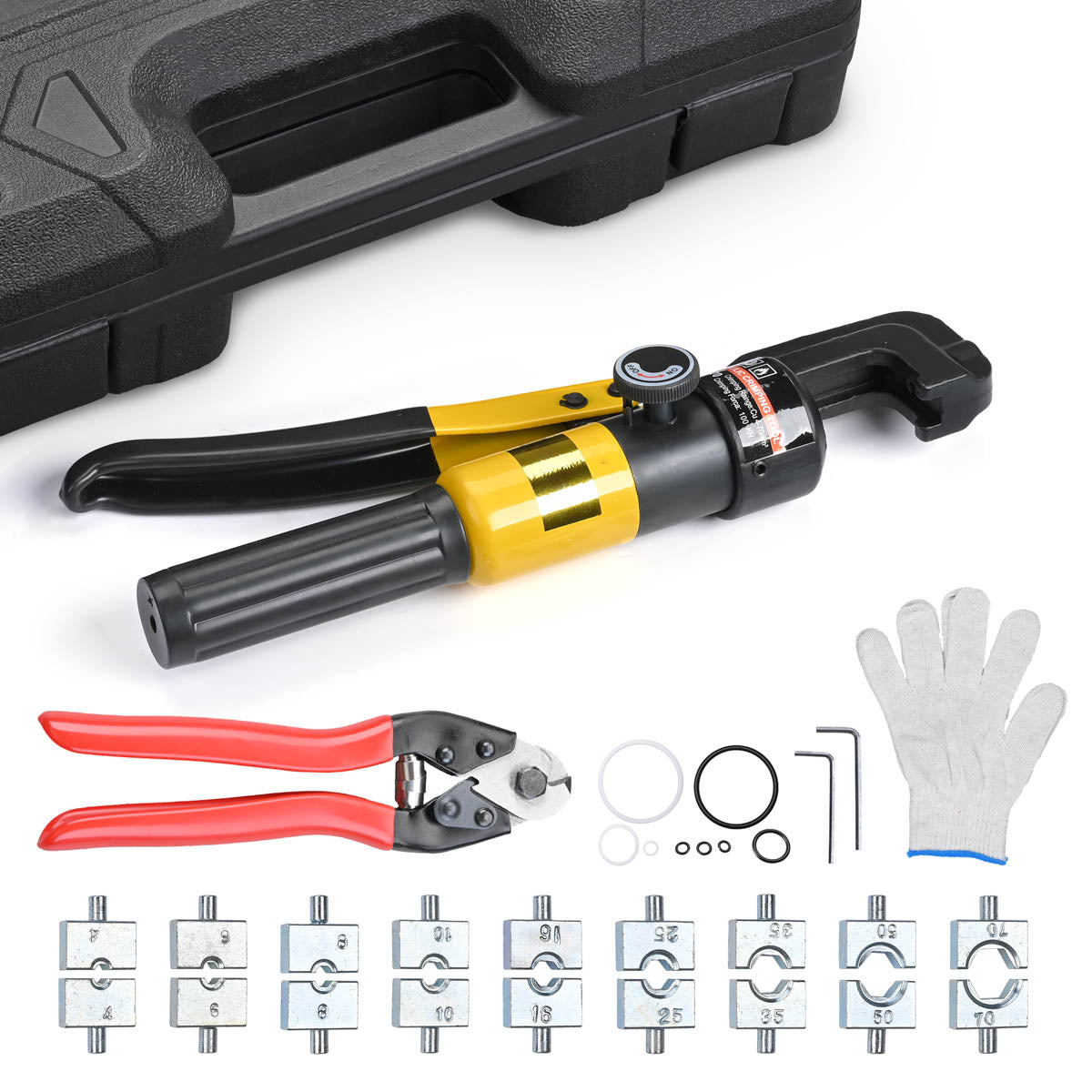

PACKAGE INCLUDED:
- 1x Crimper
- 9x dies (One Set of Dies has installed on the crimper.)
- 1x Set of Seal Rings
- 1x Plastic Carrying Case
NOTICE: Do not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
