DIY 3-Gal Vacuum Degassing Chamber Stainless Steel

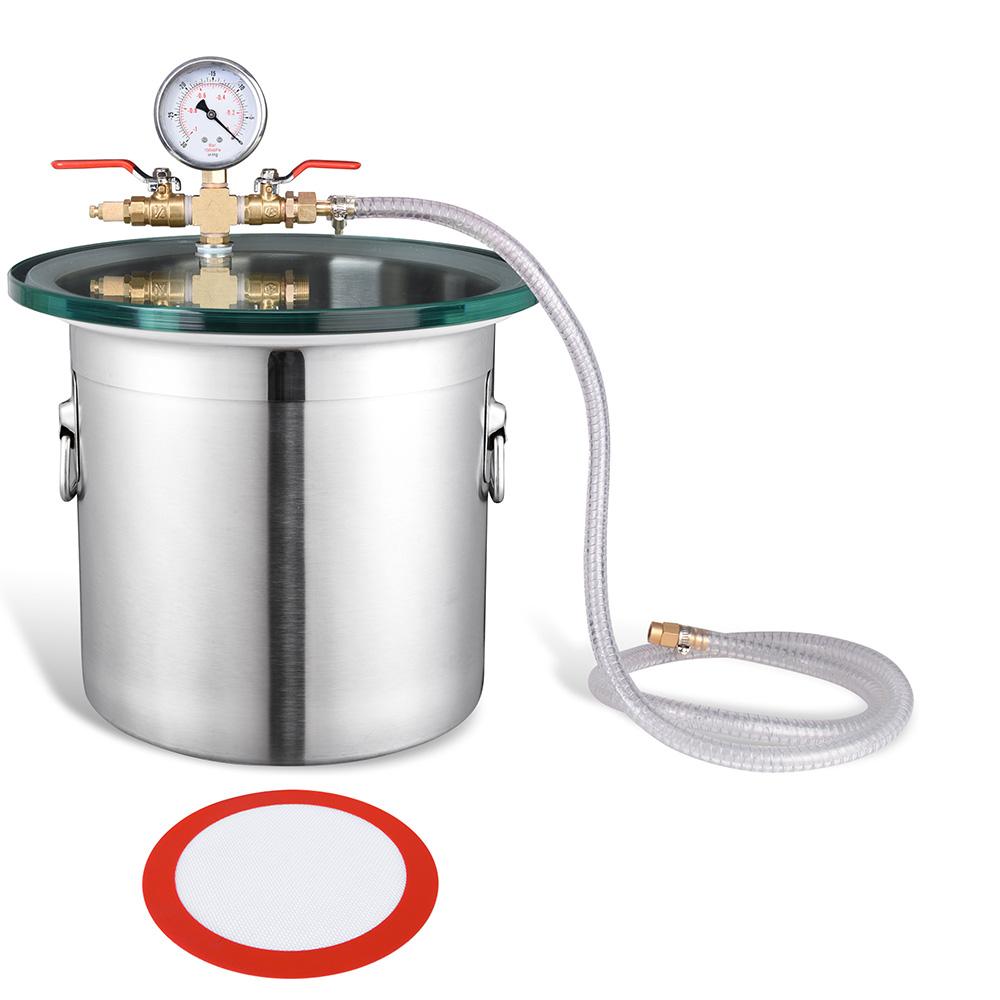

3-Gal Vacuum Degassing Chamber comes with chemical-resistant silicone gasket and lid. Suitable for degassing urethanes, silicone, epoxies and more. With the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours.

FEATURES

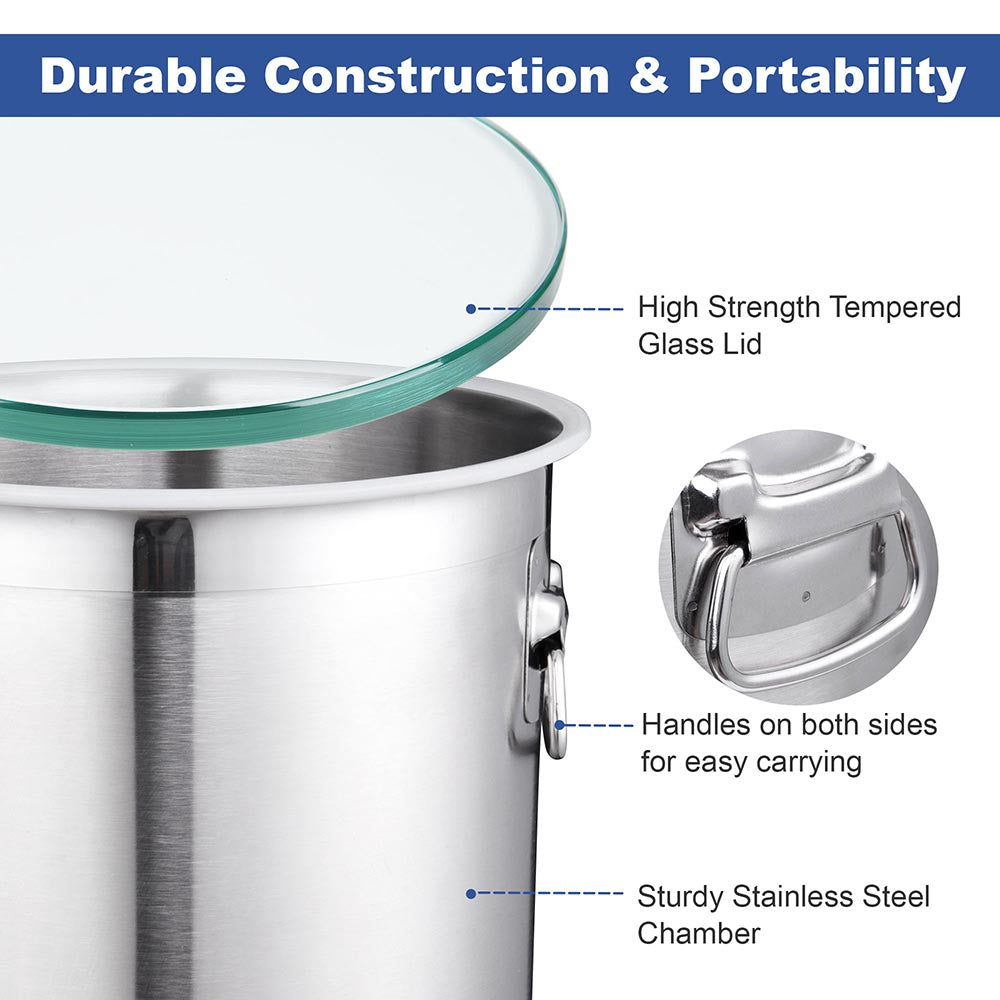

• Stainless steel chamber for corrosion & rust resistance and durability, tempered glass lid for safety
• Vacuum chamber helps to provide vacuuming, widely used on degassing urethanes, silicone, epoxies, etc
• With the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours

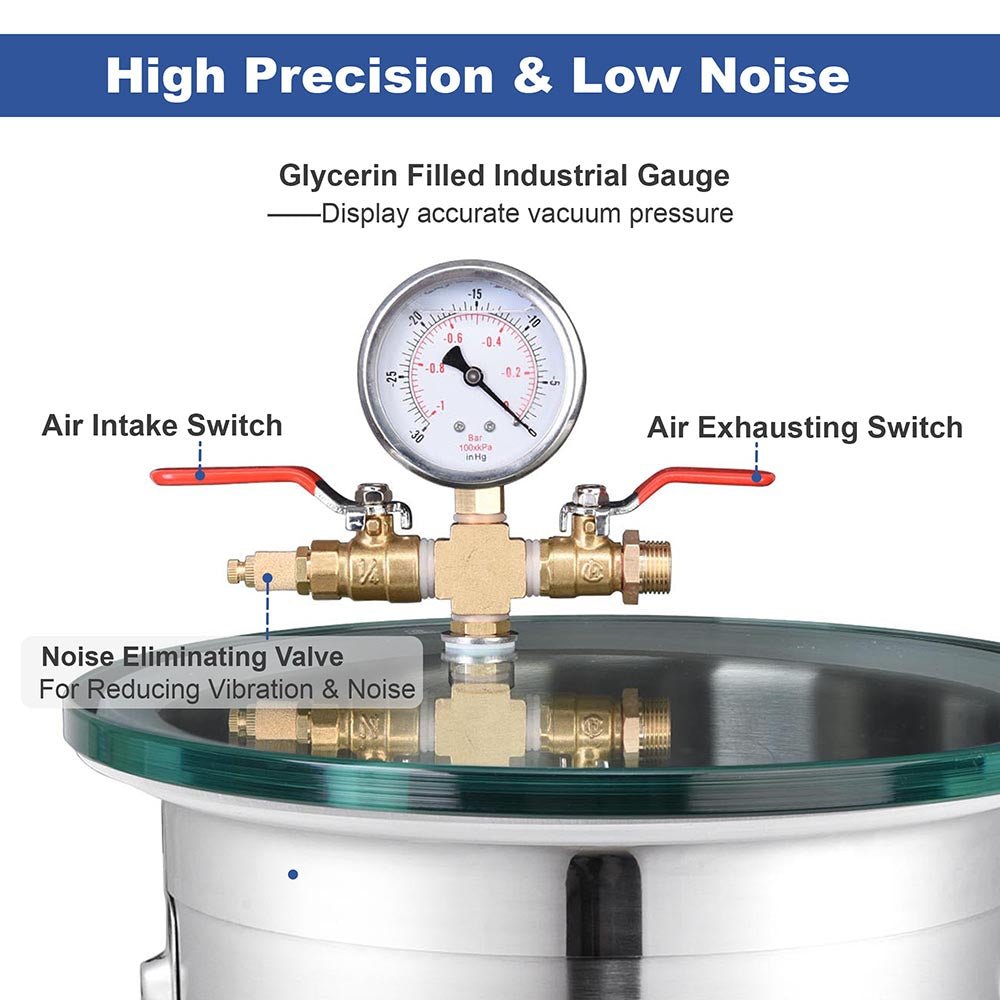

• Glycerin filled industrial gauge for displaying the operating vacuum pressure, resists vibrations and keeps the gauge accurate
• Strong and durable stainless steel container with chemical-resistant silicone gasket for providing perfect sealing on degassing; max rated vacuum is 29 inHg at sea level
• Every chamber is tested before shipping and lose no more than 2.5 inHg/24hrs

SPECIFICATIONS

• Chamber Dimension(Dia.xH): 10 13/16" x 9 13/16" (27.5 x 25 cm)
• Thickness of Lid: 1/2" (12 mm)
• Diameter of Lid: 11 7/16" (29 cm)
• Length of Steel Wire Hose: 66 15/16" (1.7 m)
• Maximum Rated Vacuum: 29 inHg at sea level
• Leakage within 24hrs: Less than 2.5 inHg
• Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
• Material: Stainless Steel, Tempered Glass
• Net Weight: 12.1 Lbs (5.5 kg)

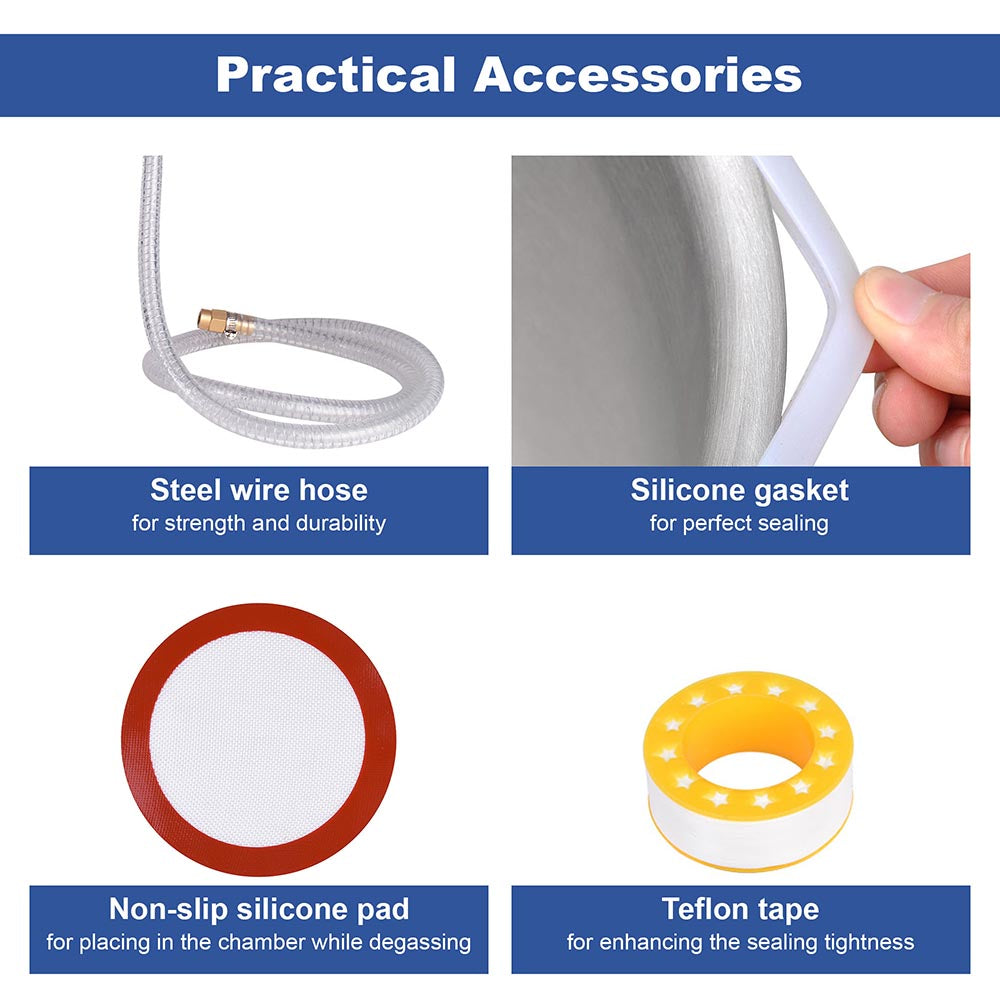

PACKAGE CONTENTS

• 1x Vacuum Chamber with Lid & Gasket
• 1x Gauge with Fittings
• 1x Hose
• 1x Silicone Pad
• 1x Teflon Tape
• 1x Manual

COMPATIBILITY EXPLANATION

• Chambers are not compatible with stabilization resin (i.e. Cactus Juice Gator Venom Minwax etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
