$ 39.79 $ 119.99
Special Offers
QTY Savings Coupon
2 + 15% OFF DIYAwning

SKU: DIY-AWN000011
Category: Awning

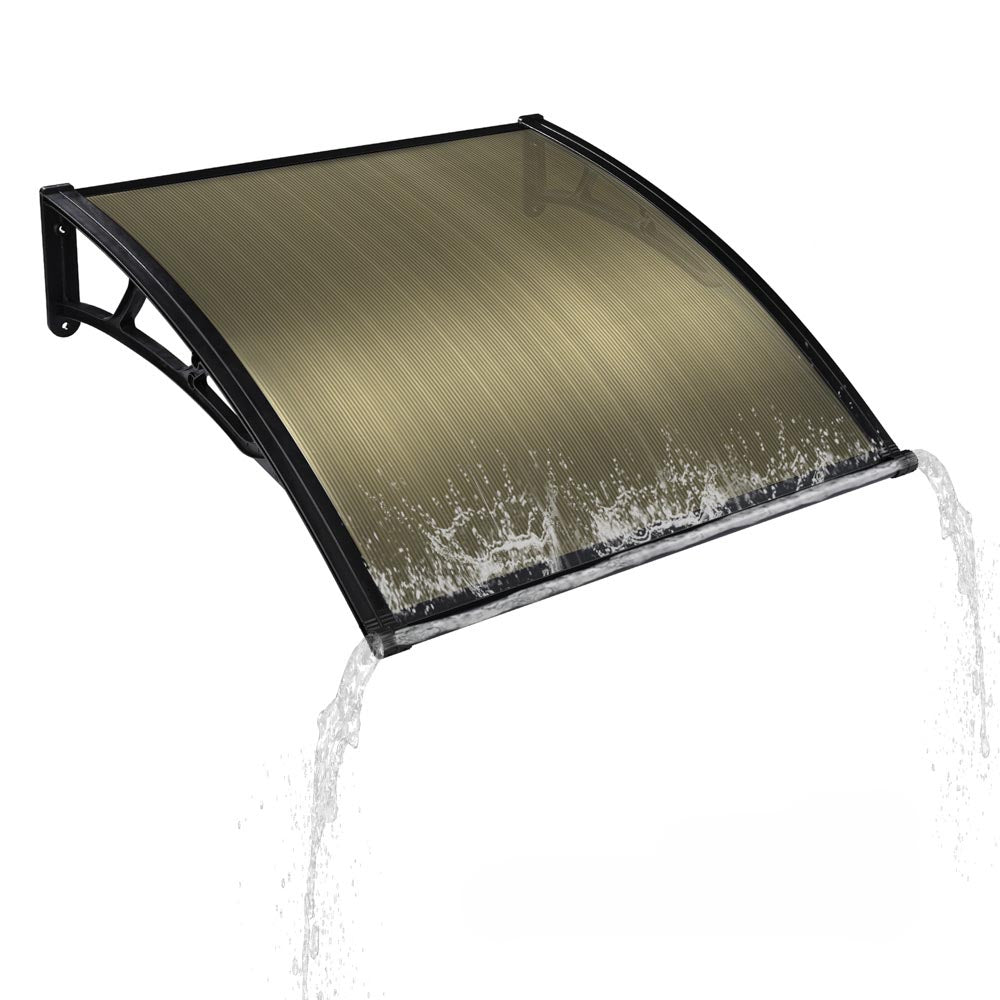

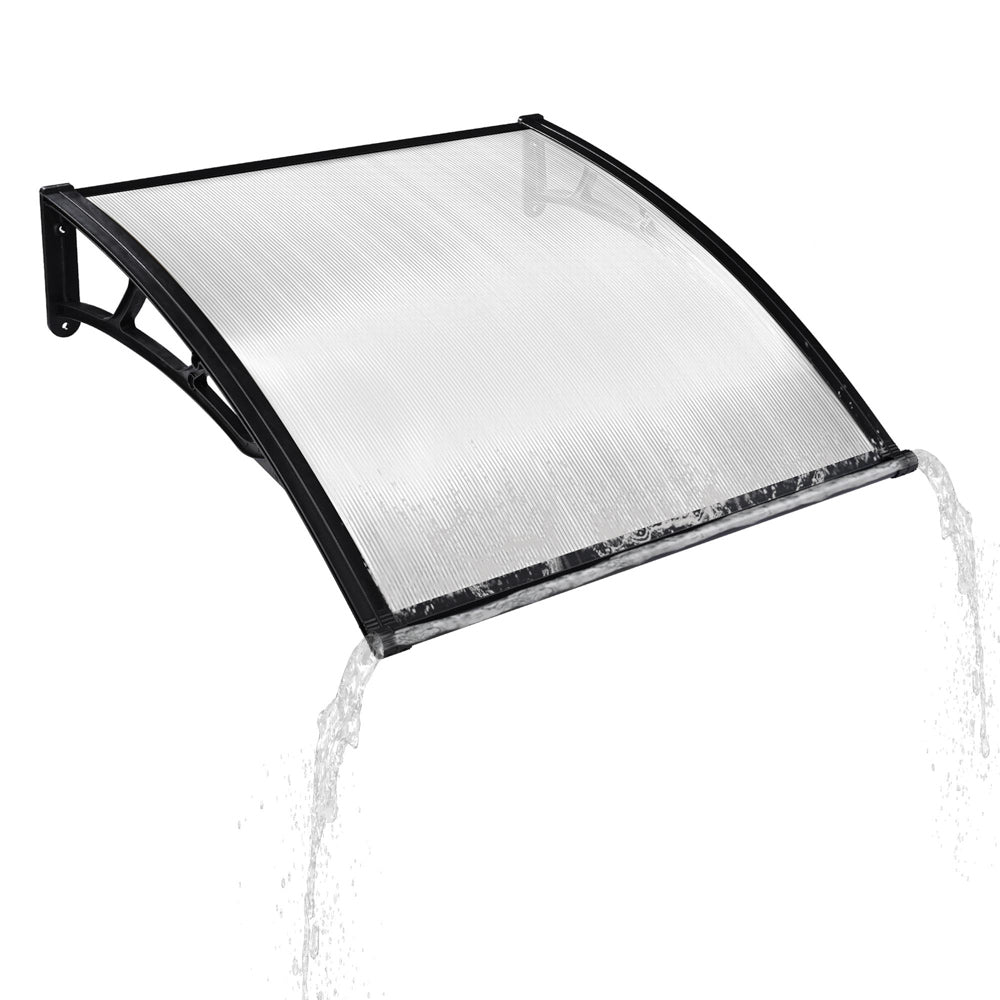

This 3' Patio Awning is made with One-piece hollow polycarbonate sheet with UV protection and strong plastic alloy brackets that can protect your entry doorway or windows. Polycarbonate sheets can easily be trimmed to your required width. This awning has good weather resistance, safe, easy and ready to install.

FEATURES
  • COMPACT ONE-PIECE SHEET: Seamless surface, no water leaking, looks sleek, much better than other brands' junctional pieces construction
  • PC HOLLOW SHEET: UV-resistant, good transmittance, helps lower the heat of blazing sunshine & cool down the indoor temperature, cut down electricity bill in summer days

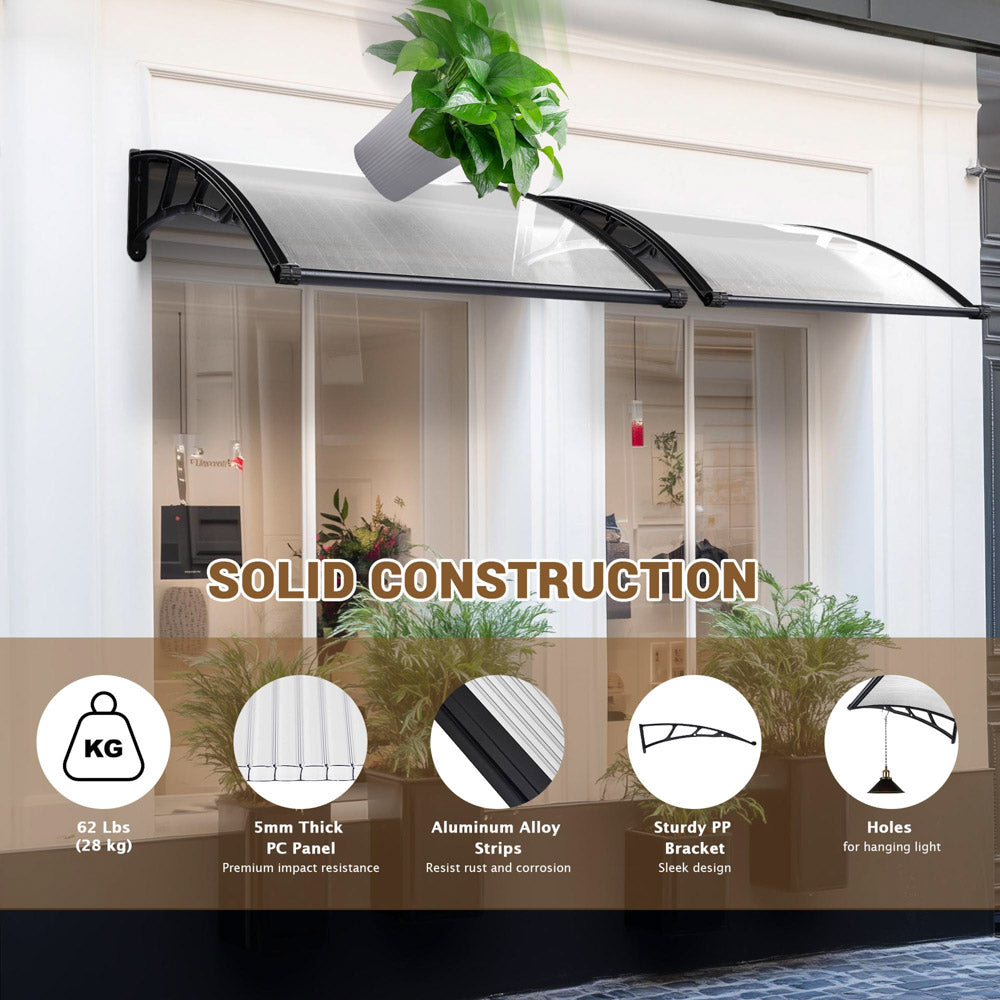

  • SOLID CONSTRUCTION: Bracket made by high quality ABS not plastic, can withstand wind/rain storm, Good impact resistant, can load up to 15kg/sqm
  • EASY TO INSTALL & DIY: Comes with a clear instruction, easy to put together and install. You can connect multiple awnings together for wider coverage
SPECIFICATIONS
  • Color Options: Clear Black/ Clear White/ Brown / Green Black/ Green White
  • Material: High Quality Polycarbonate
  • Black/White Plastic Wall Bracket: 38 9/16" x 10 1/4" x 2 3/8"

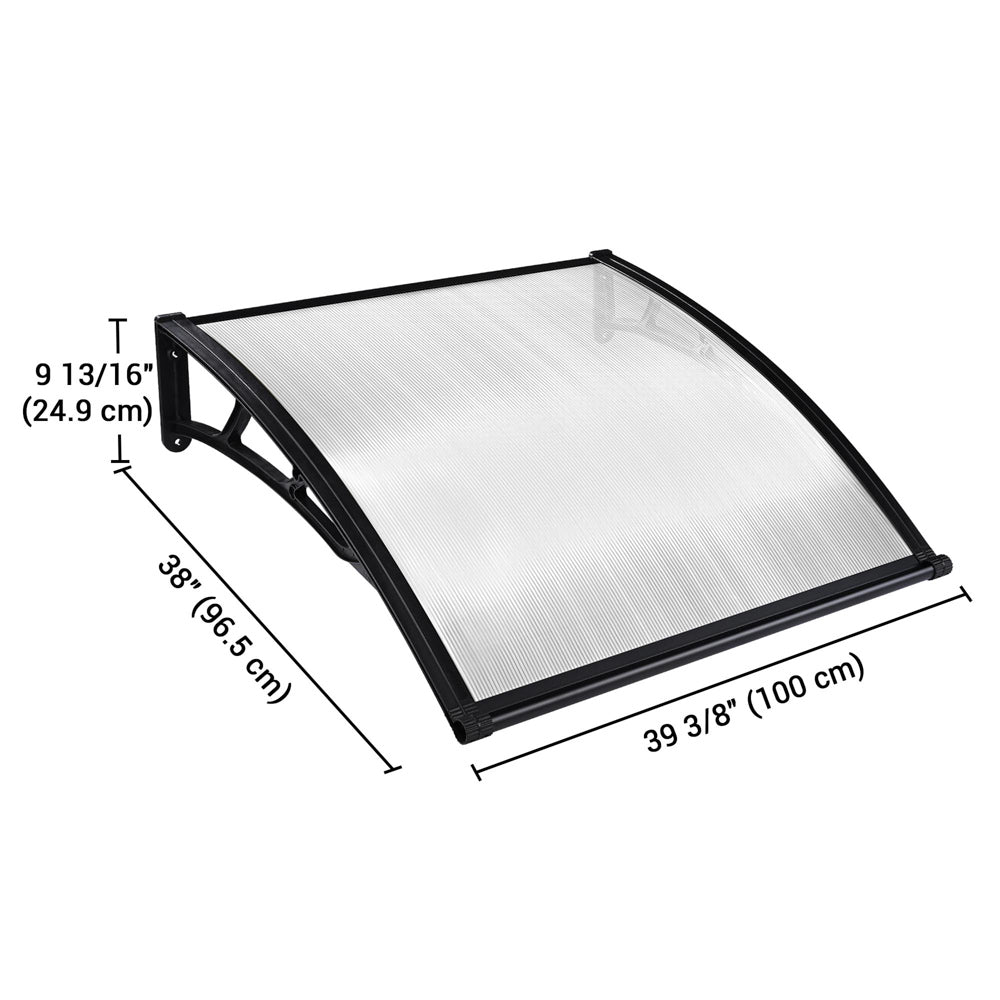

  • Overall Dimension(LxWxH): 40 9/16" x 38 9/16" x 10 1/4"
  • Black/White Aluminum Strip: 37 13/16"
  • Load Capacity: 33lbs/sq.ft (15kg/sqm)
  • Clear Black:
    • PC Hollow Sheet (LxWxD): 37 5/8" x 38 3/4" x 3/16"
    • Net Weight: 10.85 Lbs (4.92 kg)
  • Green Black/ Green White:
    • PC Sheet Size(LxWxD): 38 3/4 x 37 13/16" x 3/16"
    • Net Weight: 7.1 lbs.
  • Brown/ Clear White:
    • Overall Dimension(LxWxH): 39 9/16" x 38 3/16" x 10 1/4" (100.5 x 97 x 26 cm)
    • PC Sheet Size(LxWxD): 37 1/2" x 38 3/4" x 3/16" (95.2 x 98.5 x 0.5 cm)
    • Wall Bracket Size(LxWxH): 38 9/16" x 10 1/4" x 2 3/8" (98 x 26 x 6 cm)
    • Net Weight: 10.8 Lbs/ 7.4 Lbs(4.92 kg/ 3.36 kg)
PACKAGE CONTENTS
  • 1x PC Hollow Sheet
  • 2x ABS Bracket
  • 2x Aluminum Strip
  • 1 Set of Screws and Plastic Anchors
  • 6x Bolts
  • 1x Mounting Bracket
  • 1x User Manual
  • Brown Black & Clear White ONLY:
  • 1x PC Sheet
  • 2x PP Brackets & Aluminum Strips
  • 1 Set of Screws and Plastic Anchors
  • 1x Manual

Notice

  • Please clean snow in time for avoiding excessive pressure on awning caused by overweight snow.

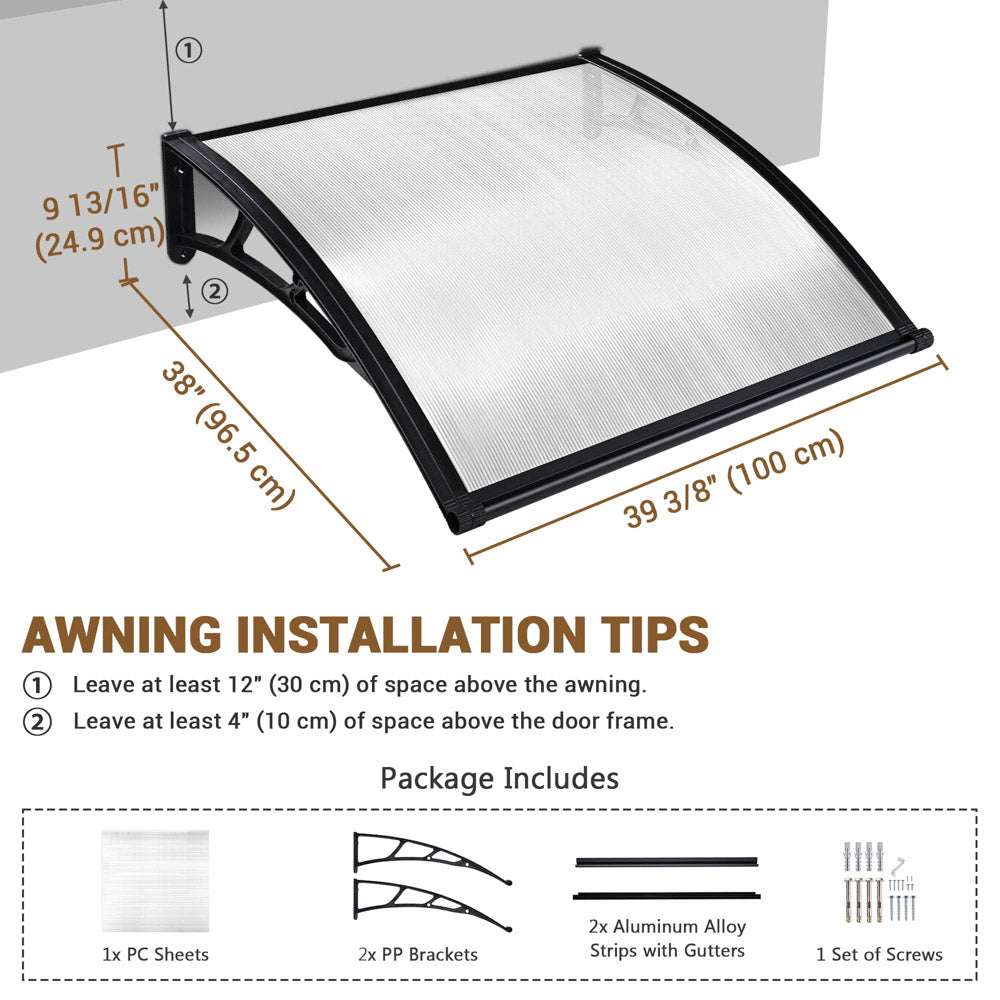

  • The bottom of the awning bracket should be at least 4" (10 cm) above any door opening or window frame.
  • Please make sure that there is enough space to install awning and the wall surface is flat before purchase.
  • Please note that color may slightly vary due to lighting or your monitor settings.
