$ 125.79

SKU: DIY-HPE000001
Product Type: HVACR Tools

7 Lever HVAC Hydraulic Tube Expander Tubing Expanding Tool Swaging Kit is used for Soft copper tube, Aluminum tube, Titanium tube, soft steel and so on. 7 Capacity Tubing Heads: 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8".

FEATURES

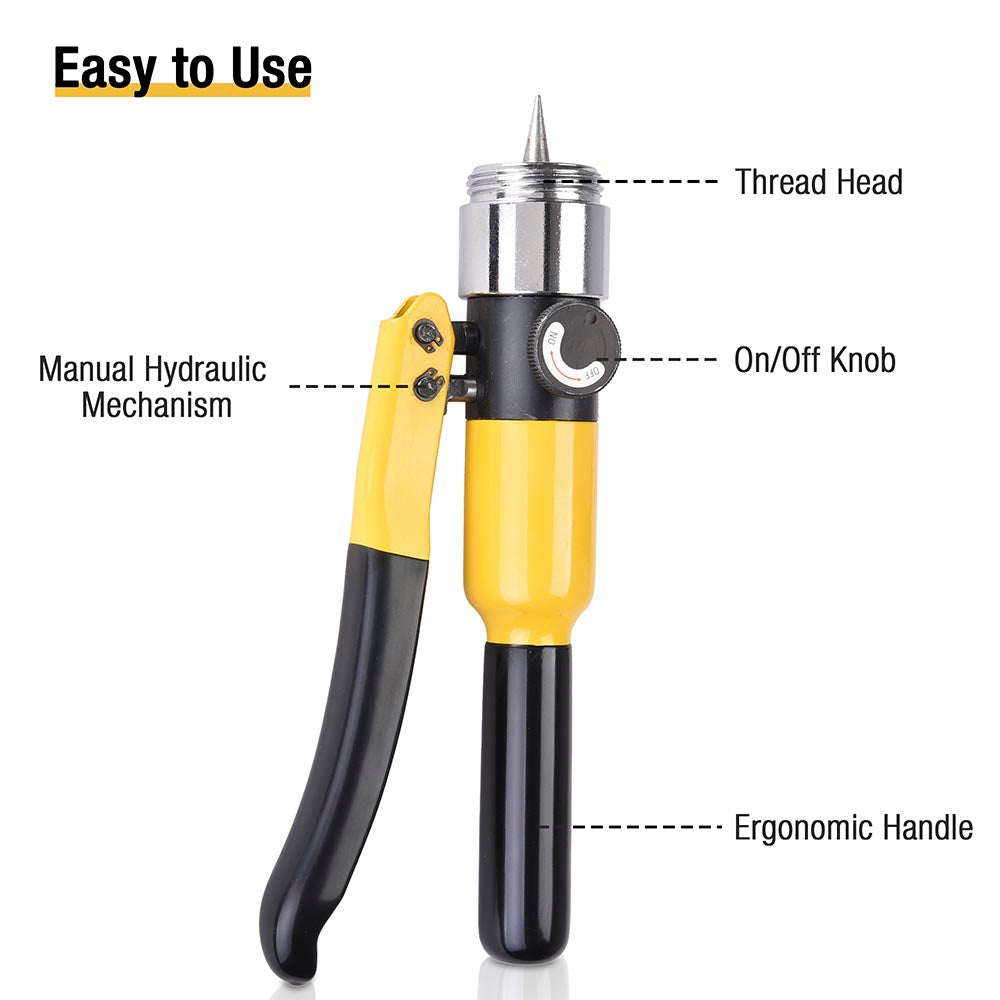

  • Hydraulic Tube Expander
    • Manual hydraulic mechanism design provides large tension for better expanding with less force, ergonomic handle for providing labor-saving operation
    • Rotate the "on/off " knob to tighten and release the expansion heads for replacing the heads you need

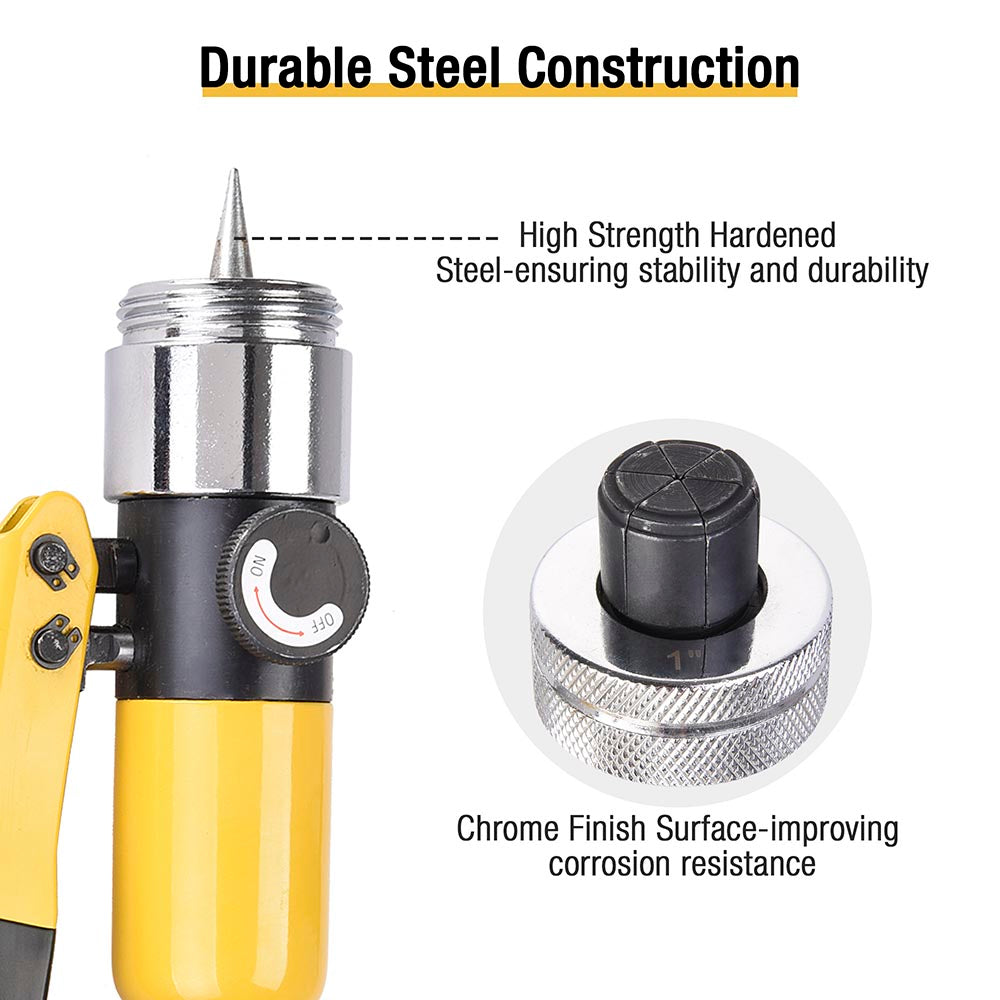

  • Steel Construction
    • High strength hardened steel expander heads and thread head of the tube expander for ensuring the stability and durability, suitable for creating soft copper and aluminum joints for plumbing use
    • Chrome finish surface for improving corrosion resistance

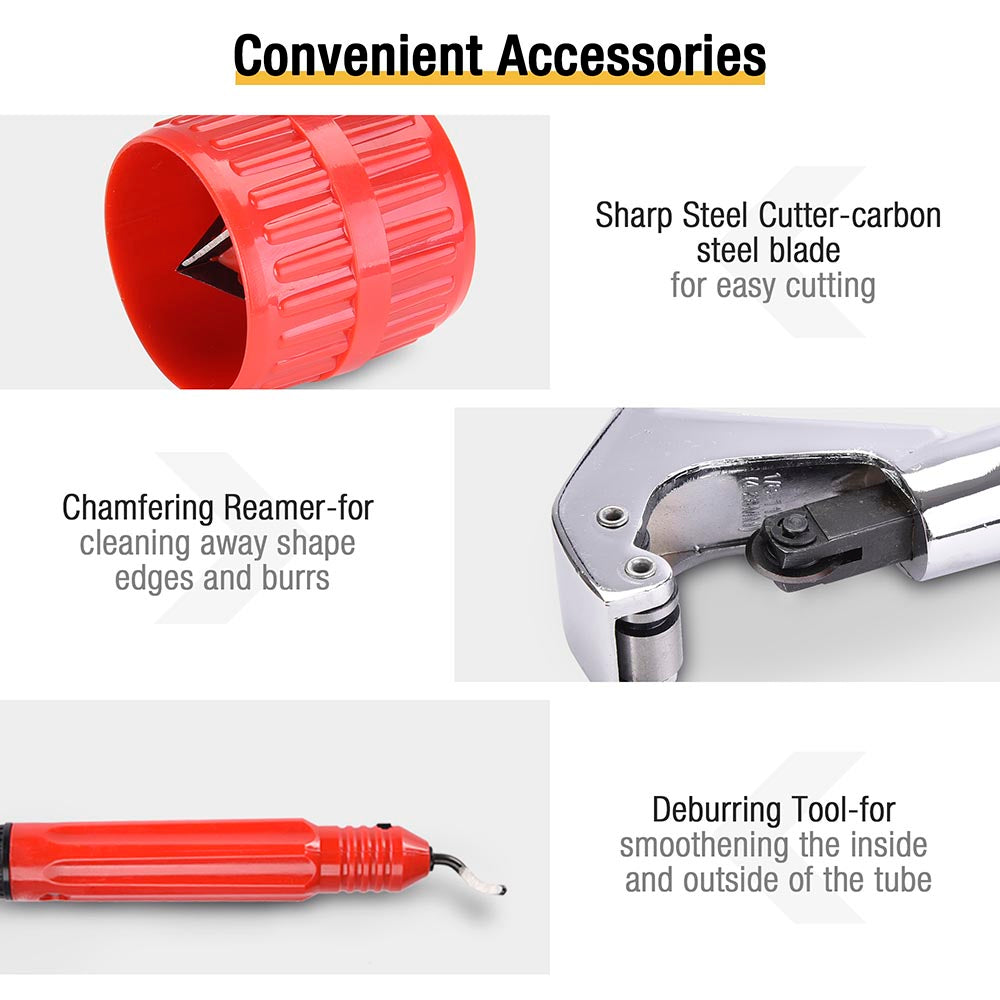

  • Necessary Tools

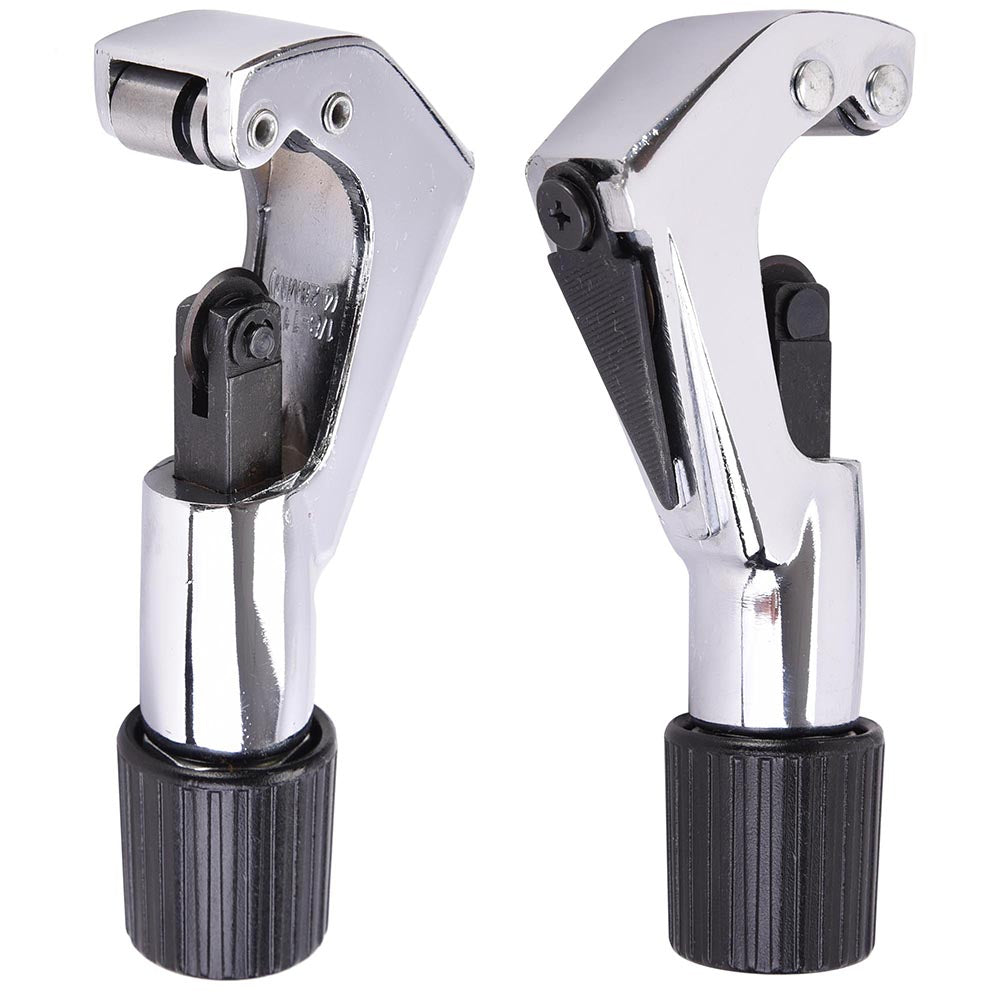

    • Tube cutter with sharp carbon steel blade for easy and fast cutting, the capacity is from 3/8 to 1 1/8 for cutting different sizes of tubes, chamfering reamer behind the cutter for cleaning away the shape edges and burrs
    • Chamfering tool and deburring tool for smoothing the inside & outside of tubes
  • Blow-molded case with handle for convenient storage and keeping all accessories in place
  • The expander set is widely applied on expanding different soft tubes on plumbing, heating, gas, refrigeration and air conditioning and HVAC systems installation and maintenance

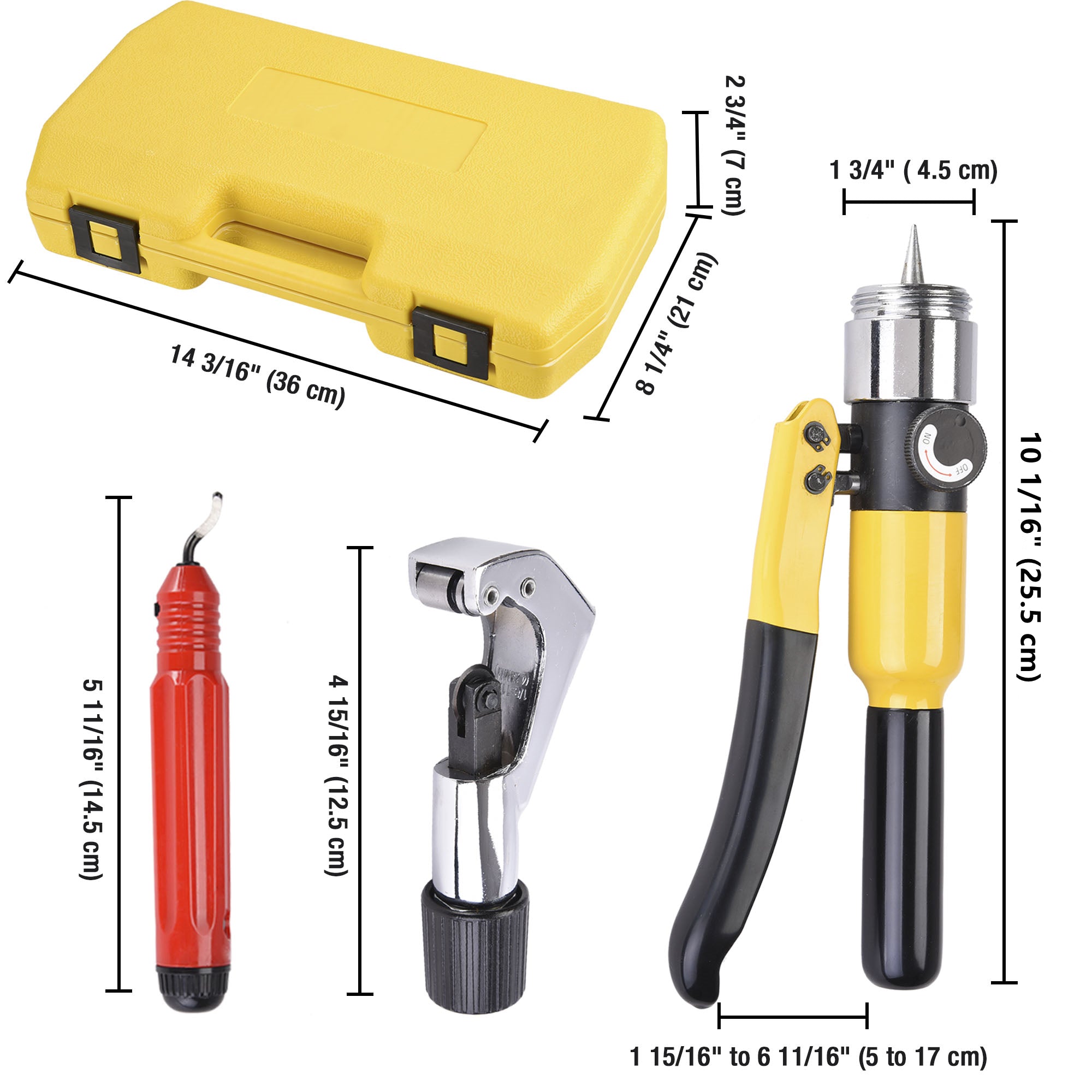

SPECIFICATIONS
  • 7 Capacity Tubing Heads: 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8"
  • Expander Size(LxH): 10 1/16" x 1 3/4" (25.5 x 4.5 cm)
  • Extendable Handle Range: 1 15/16" to 6 11/16" (5 to 17 cm)
  • Tube Cutter Length: 4 15/16" (12.5 cm)
  • Tube Cutter Capacity: 3/16" to 1 1/8" (0.4 to 2.8 cm)
  • Deburring Tool Length: 5 11/16" (14.5 cm)
  • Max Cutting Thickness of Copper and Aluminum Tubes: 1/8" (3.5mm)
  • Max Cutting Thickness of Stainless Steel Tubes: 1/16" (2mm)
  • Plastic Case Dimension(LxWxH): 14 3/16" x 8 1/4" x 2 3/4" (36 x 21 x 7 cm)
  • Net Weight: 7.7 Lbs (3.5 kg)

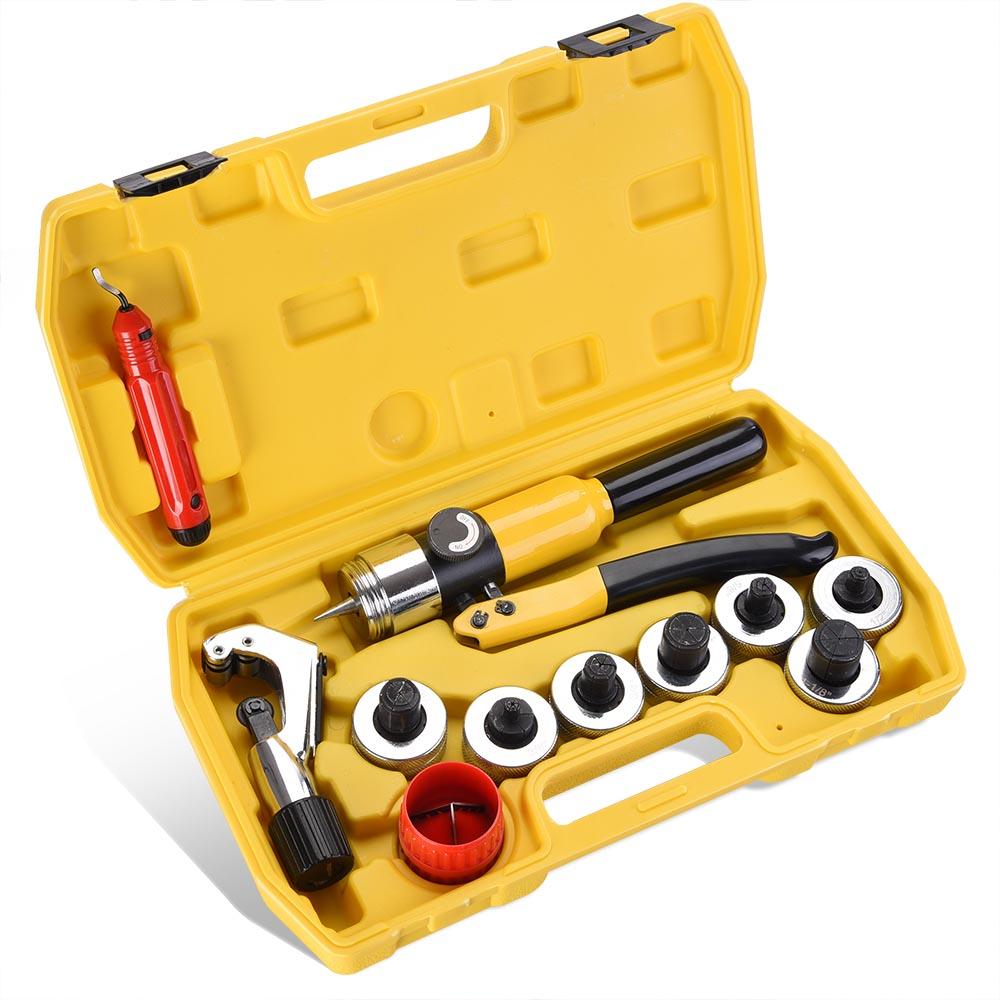

PACKAGE CONTENTS
  • 1x Hydraulic Tube Expander
  • 7x Expander Heads
  • 1x Tube Cutter
  • 1x Reamer
  • 1x Deburring Tool with Extra Blade
  • 1x Chamfering Tool
  • 1x Carrying case
  • 1x Manual
