Sale!
$ 339.99 $ 799.99
SKU: DIY-PDH000006

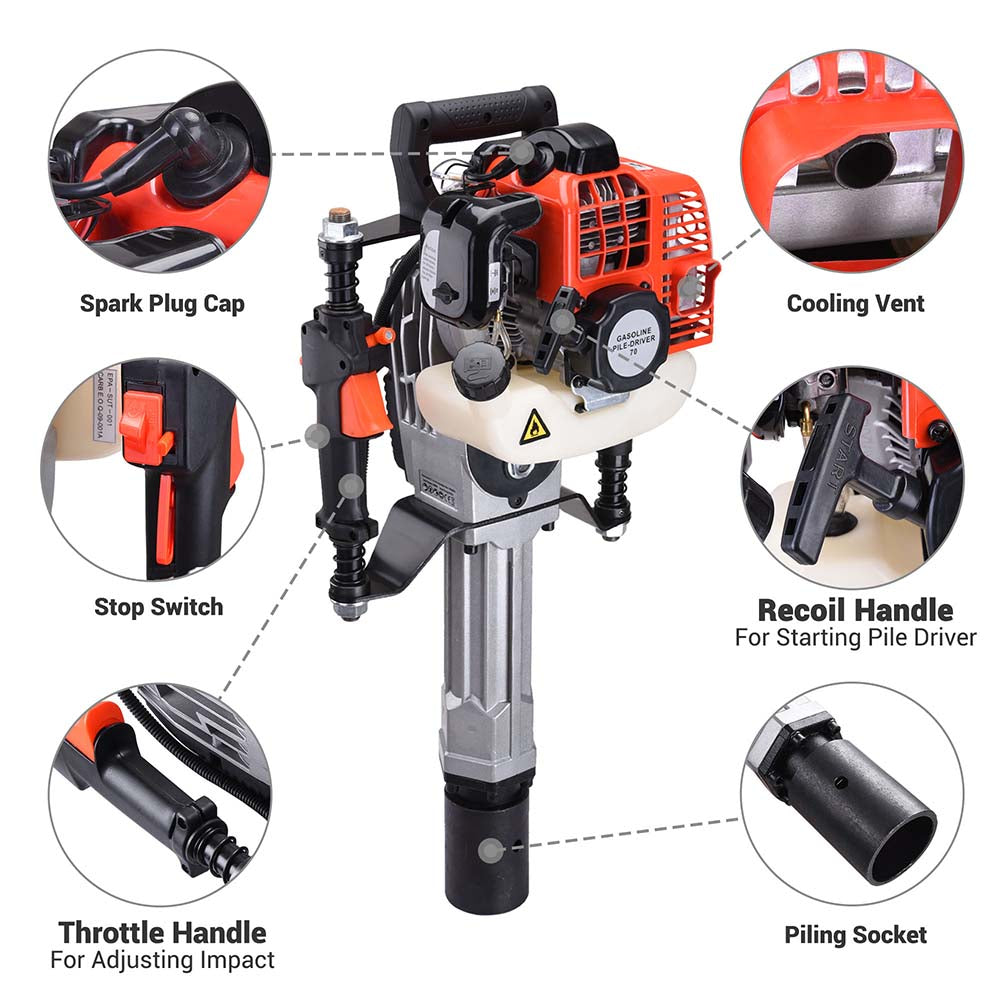

FEATURES
  • Updated more powerful 1.7hp (1300W) 51.7cc pile driver, can help you drive posts more efficiently
  • 3.5 N.m Max torque for larger impact power, compared with others on the market only with 1.45 N.m
  • Internal vibration damper for comfortable use

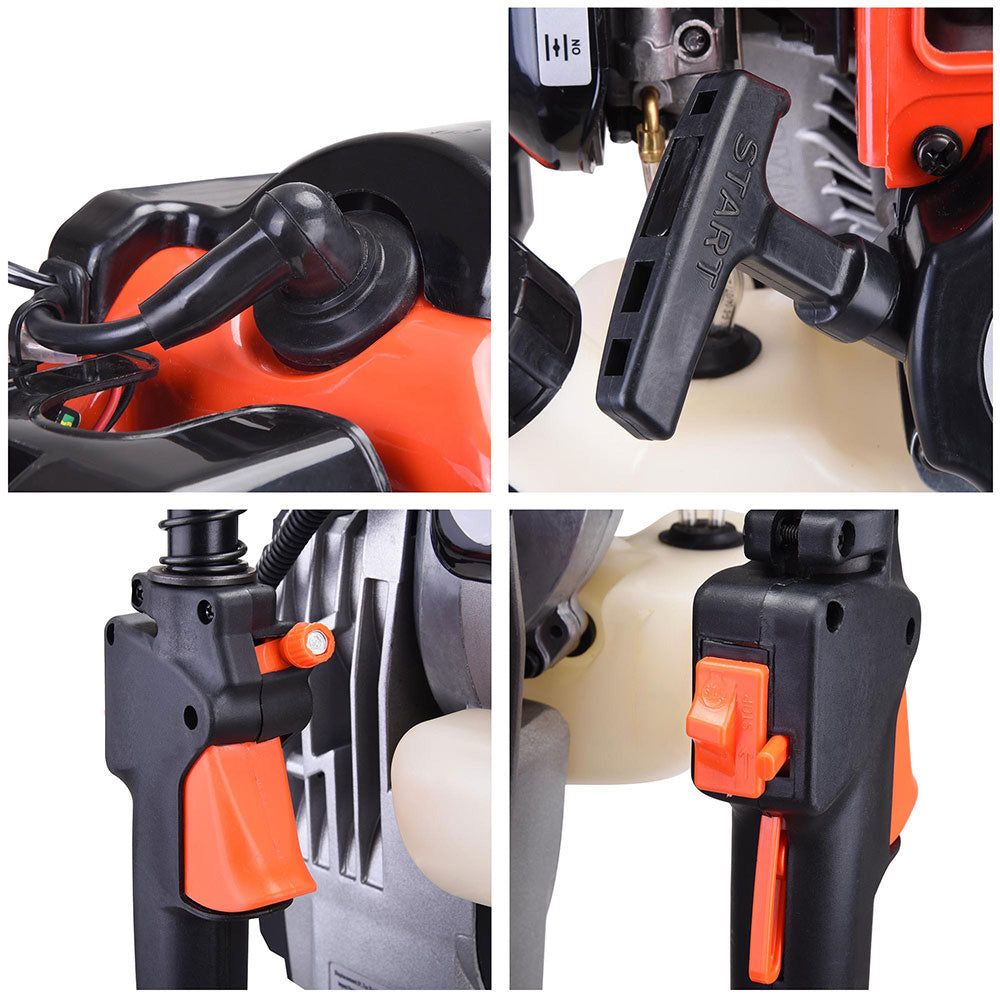

  • With a throttle on the handle to adjust impact power conveniently
  • Powered by 2-stroke motor; meets the EPA certification standards
  • Superior cooling vents for prolonged use and smooth running

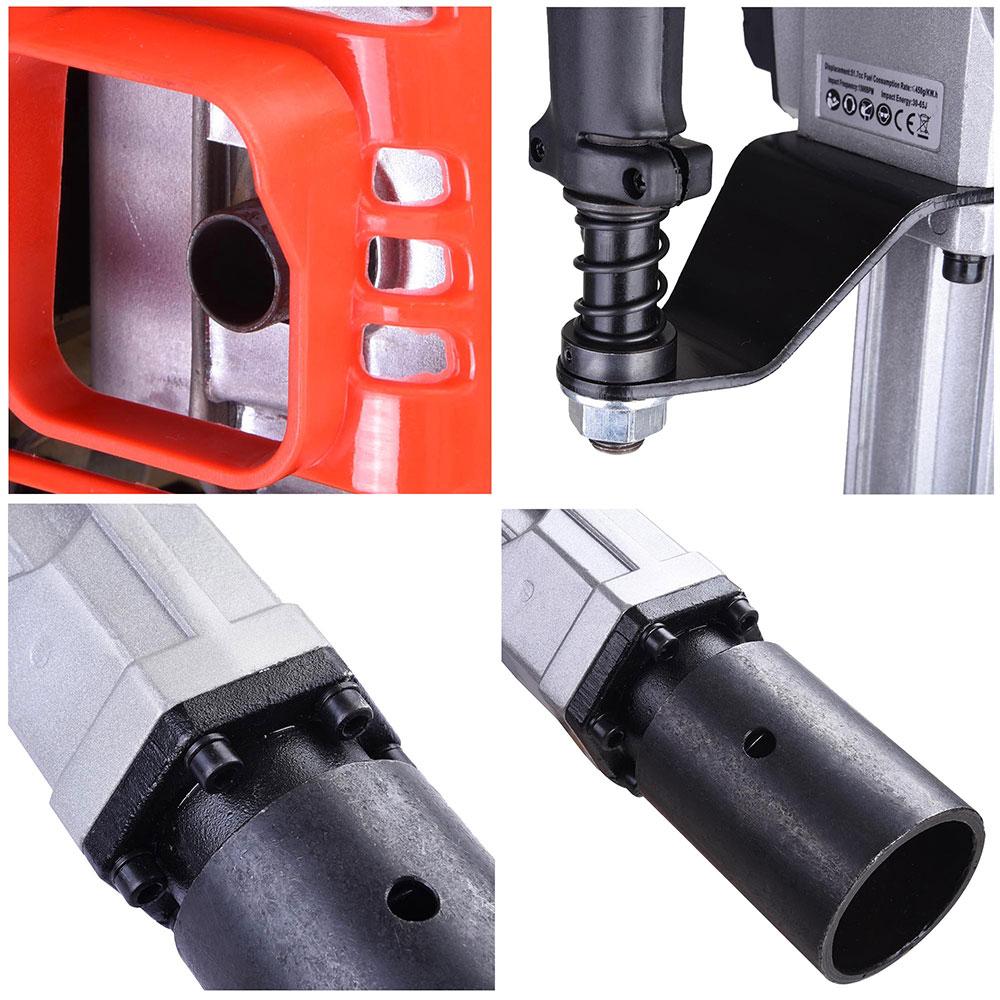

  • Comes with 2 size post driving head to fit more size posts
  • Portable size for convenient carrying
  • Widely used in farm & ranch, garden, agriculture, geophysical exploration, construction and more
SPECIFICATIONS

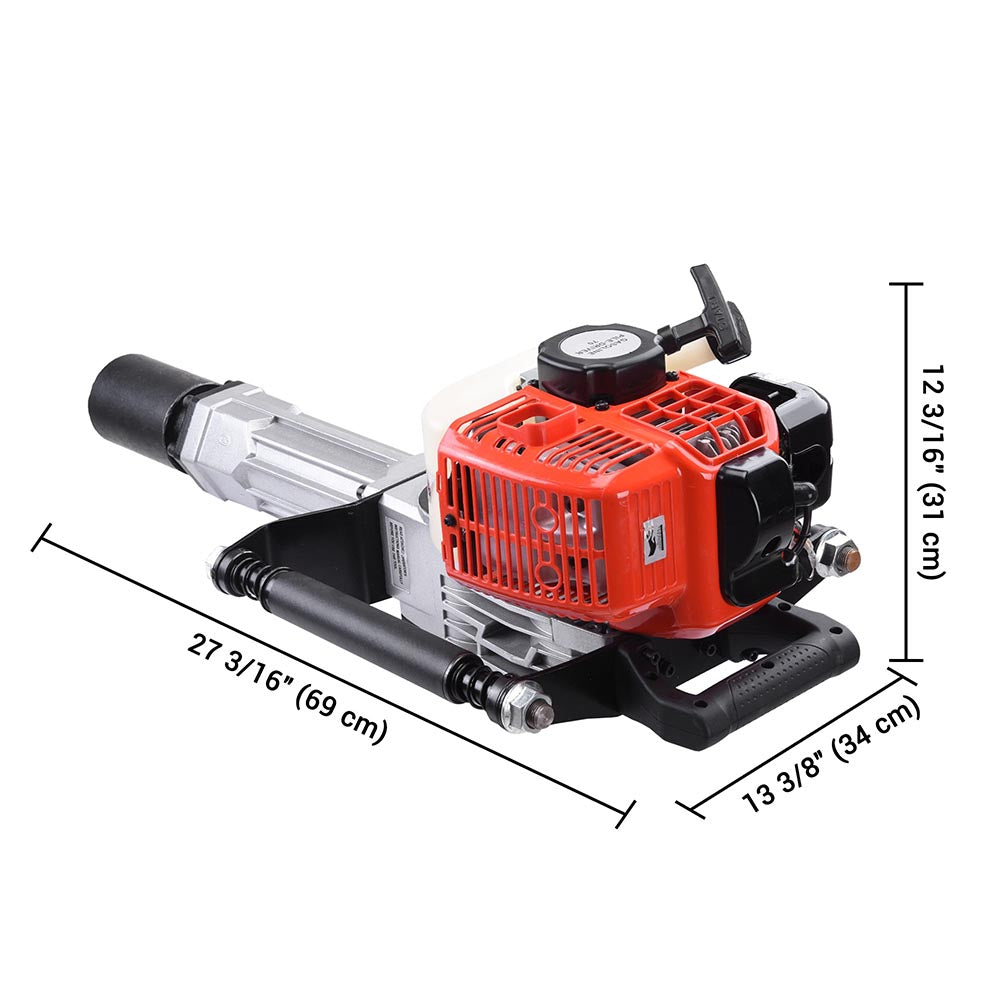

  • Overall Size without Pile Head (LxWxH): 27 3/16" x 13 3/8" x 12 3/16" (69 x 34 x 31 cm)
  • Pile Head Inner Diameter: 2 3/16" and 2 3/4" (55mm and 70mm)
  • Displacement: 51.7 cc
  • Impact Frequency: 1500 BPM
  • Impact Energy: 30-65 J
  • Max Power and Speed: 1.7 hp (1300 W) and 7000 r/min
  • Max Torque and Speed: 3.5 N.m and 5000 r/min
  • Engine Type: 1 3/4"x1 5/16"(44x34mm); Single cylinder; Air cooling; 2 Stroke

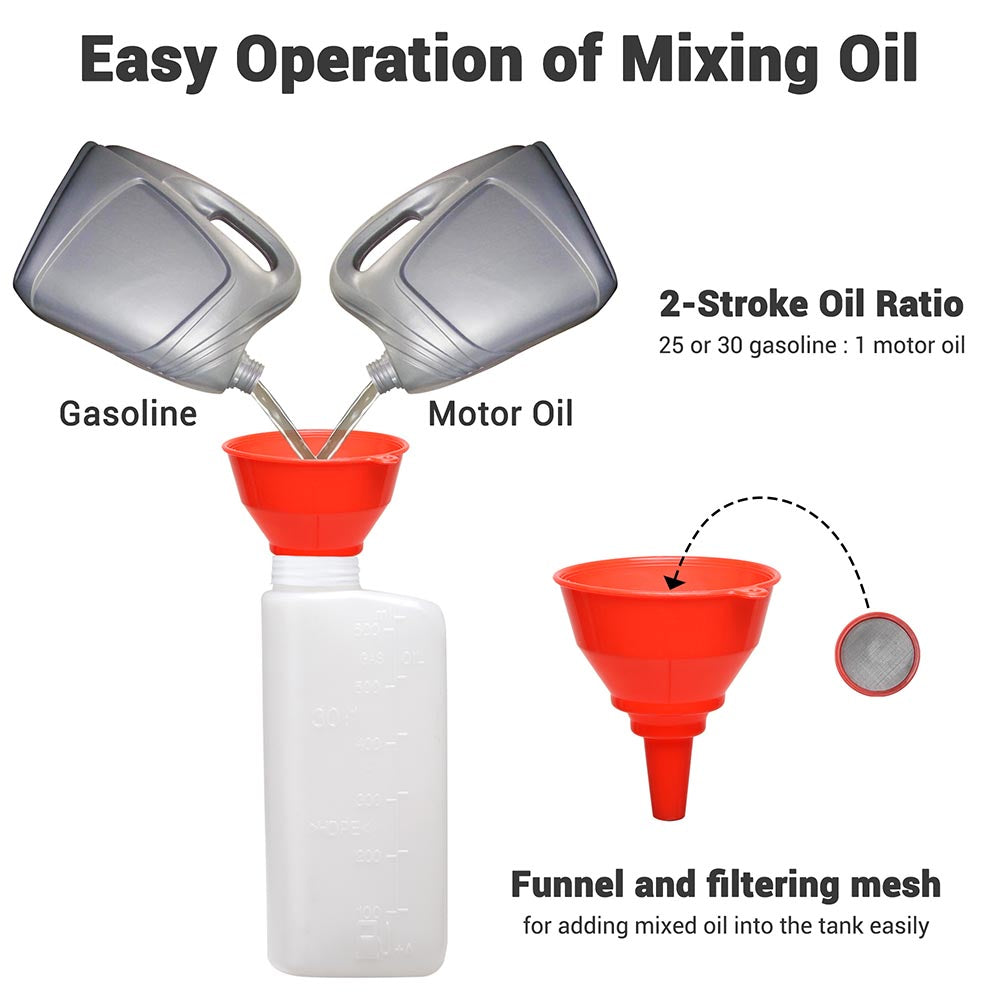

  • Fuel Type: Mixed Oil (25 or 30 gasoline : 1 motor oil)
  • Fuel Consumption Rate: ≤450g/kW.h
  • Fuel Tank Capacity: 1 L
  • Starter System: Hand pull start

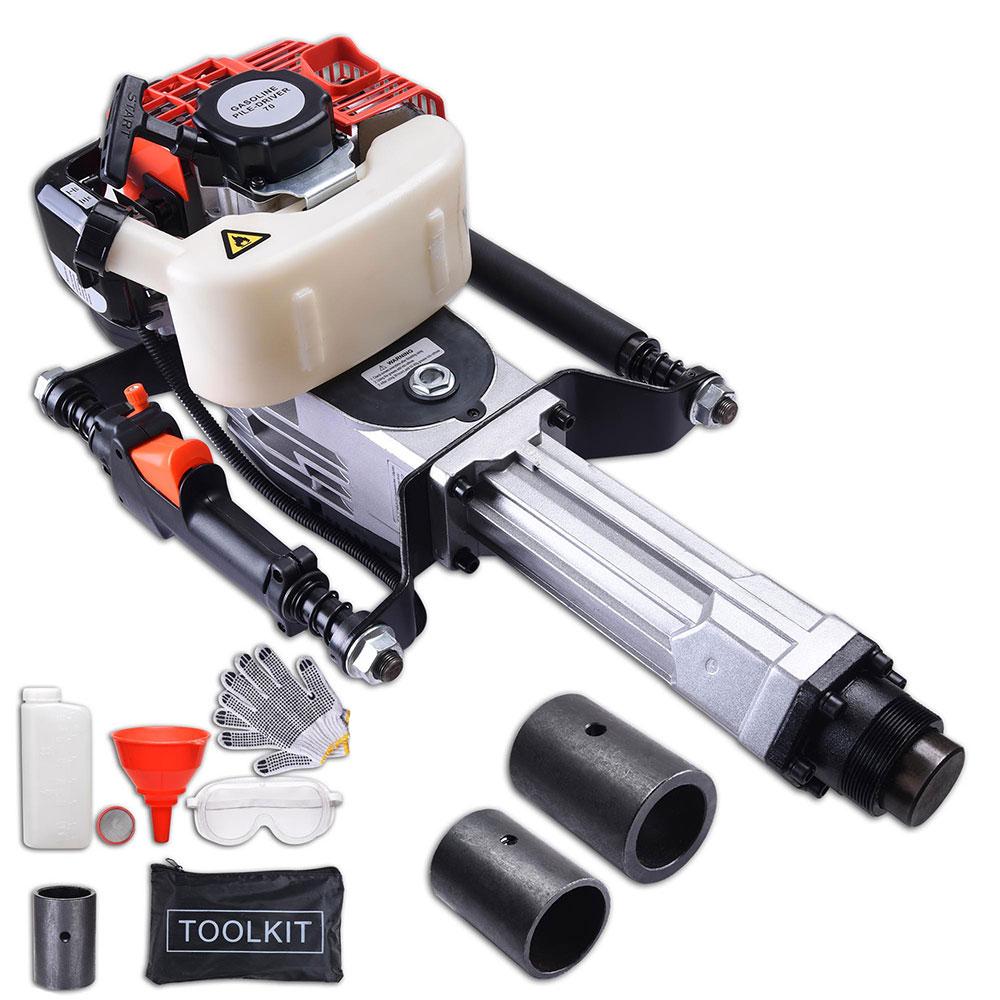

PACKAGE CONTENT
  • 1x T-Post Driver
  • 2x Pile Heads
  • 1x Oil Can (empty)
  • 1x Wrench
  • 1x Funnel
  • 1x Spark Plug

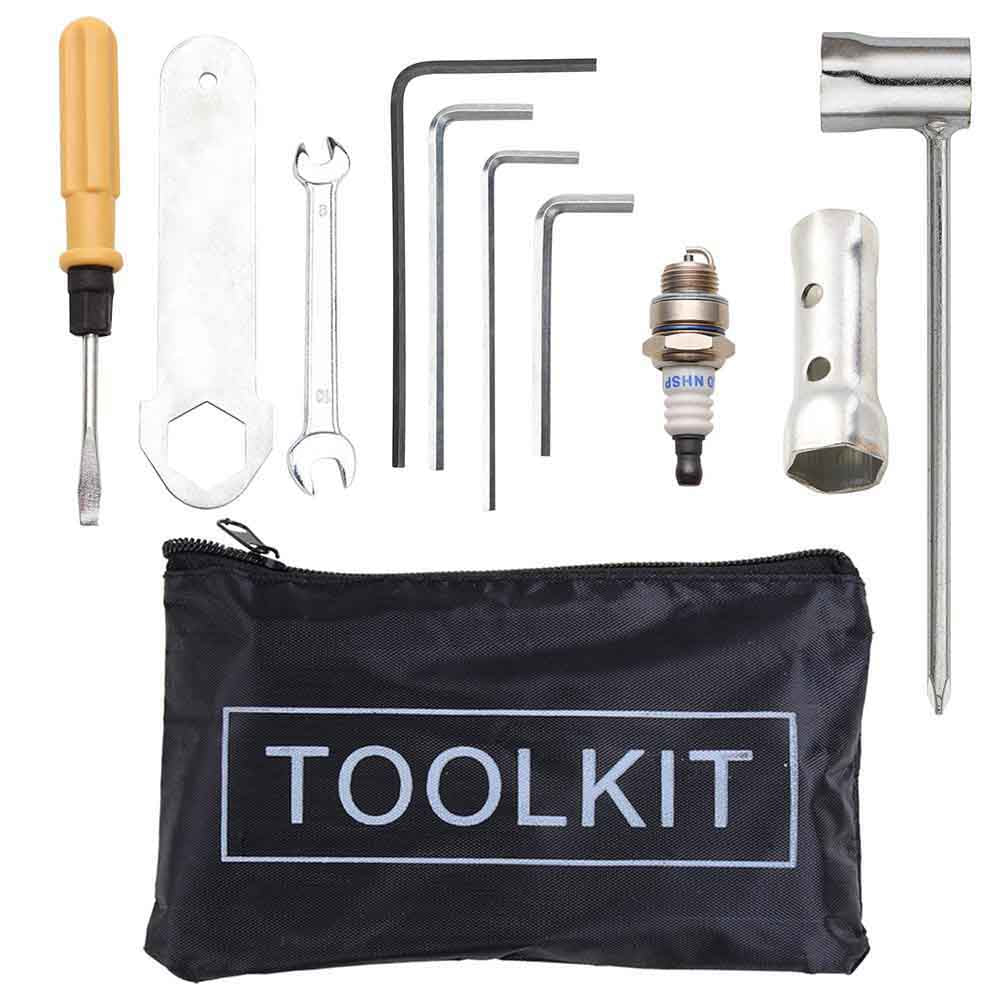

  • 1 Bag of Tools
  • 1 Pair of Gloves
  • 1 Pair of Glasses
  • 1x Manual
NOTICE:
  • This pile driver is used to drive the pile in soft ground like soft soil. Do NOT drive it in solid ground. Otherwise this machine will stop working.
Product Type: Jackhammer
