DIY Cable Ramp 3-Channel Cord Protector for 3" Cables/Hoses

Heavy-Duty 3-Channel Cable Protector Ramp for simultaneous protection of three large 3 inch cables or hoses. Engineered for extreme-duty industrial traffic and complex cable management in construction, mining, shipyards, and major event power distribution. Modular design with a 20+ ton load capacity, high-visibility lids, and anti-slip surface.

FEATURES

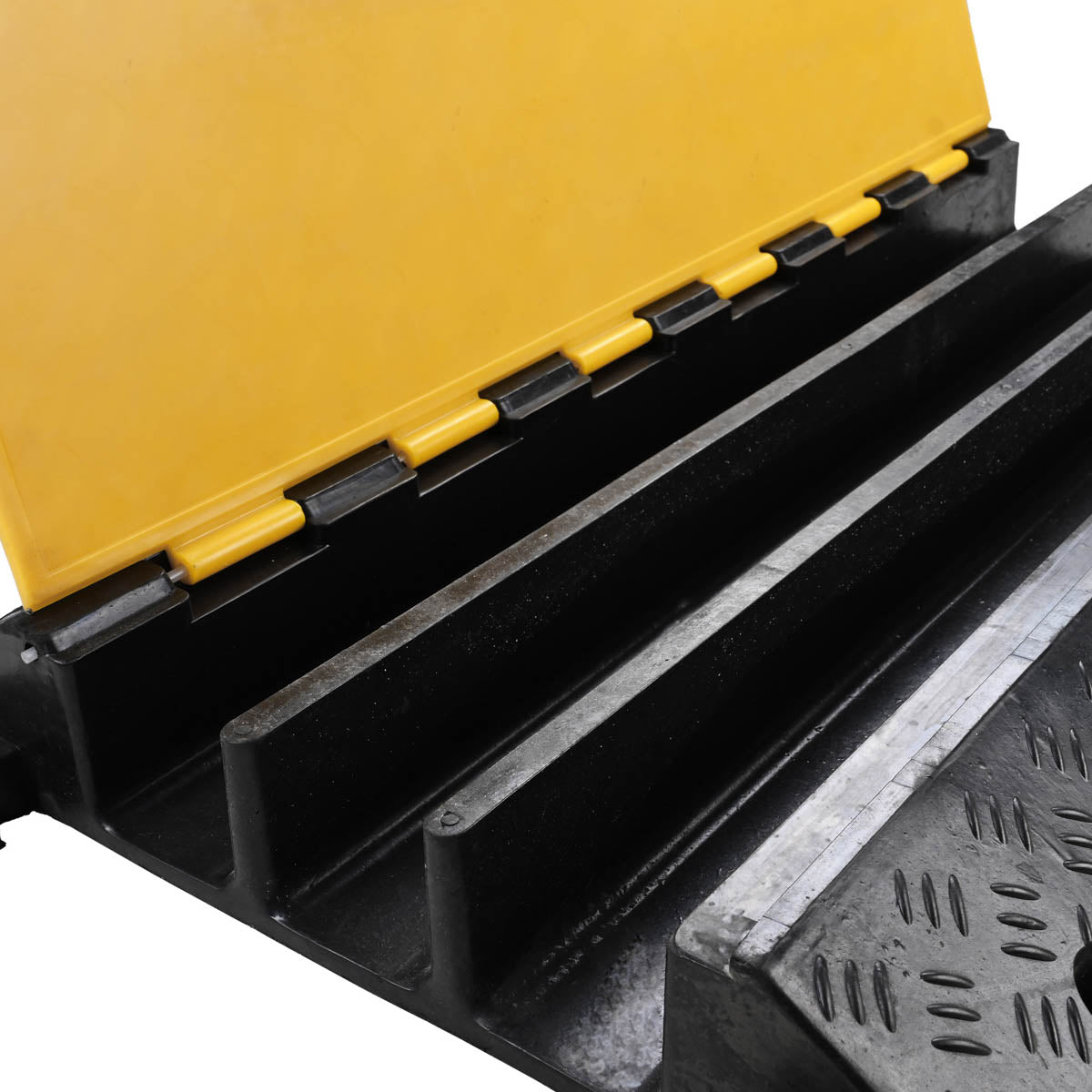

• Triple Capacity for Large-Diameter Lines: This is the critical upgrade from a single-channel model. Engineered with three separate, extra-wide channels, each designed to accommodate and protect a full 3" diameter cable or industrial hose. This prevents dangerous and inefficient tangling, crushing, and heat buildup between large, high-current cables.

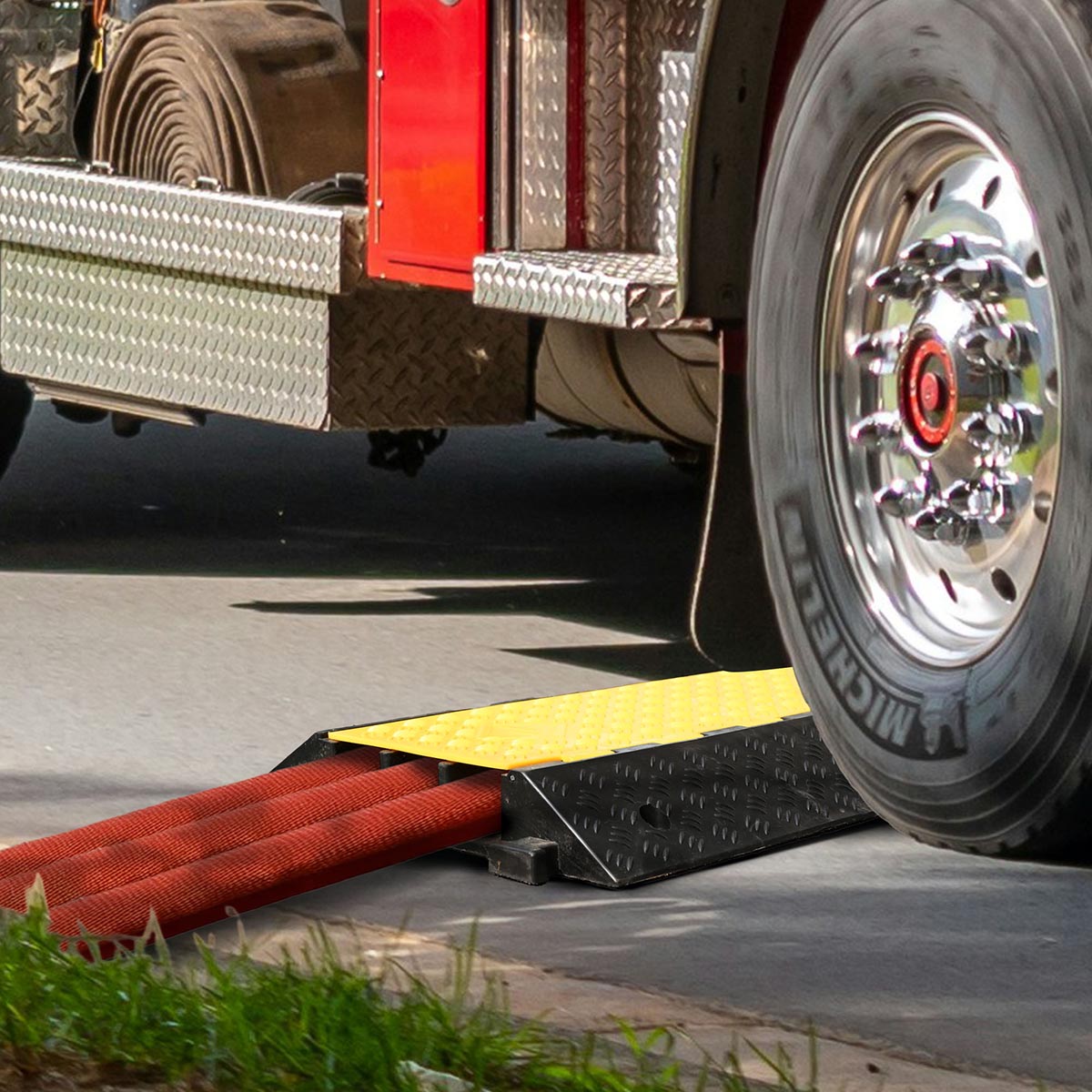

• Engineered for Severe Industrial Traffic: Constructed from reinforced polyurethane or rubberized composite, this ramp is built to withstand continuous rolling loads from the heaviest equipment-excavators, loaded flatbeds, mining vehicles-with capacities often rated at 20 tons (44,000 lbs). The multi-channel design distributes weight across a wider footprint for superior ground stability.
• Critical Cable Separation & Safety: Separating large power cables from data lines or hydraulic hoses is not just about organization; it's a key safety practice to prevent electromagnetic interference, accidental cutting, and heat-related degradation. This ramp system enforces that best practice for your most critical lines.

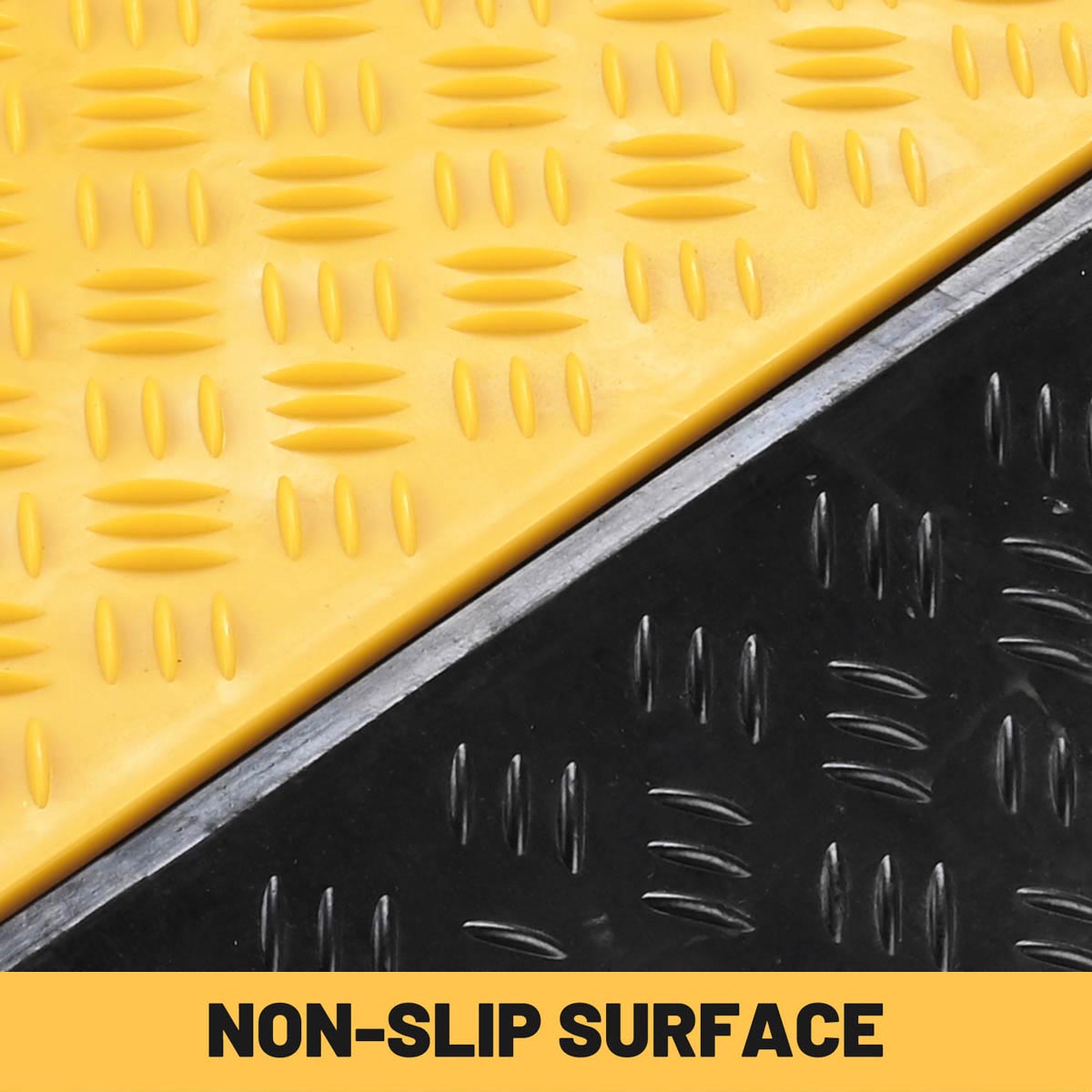

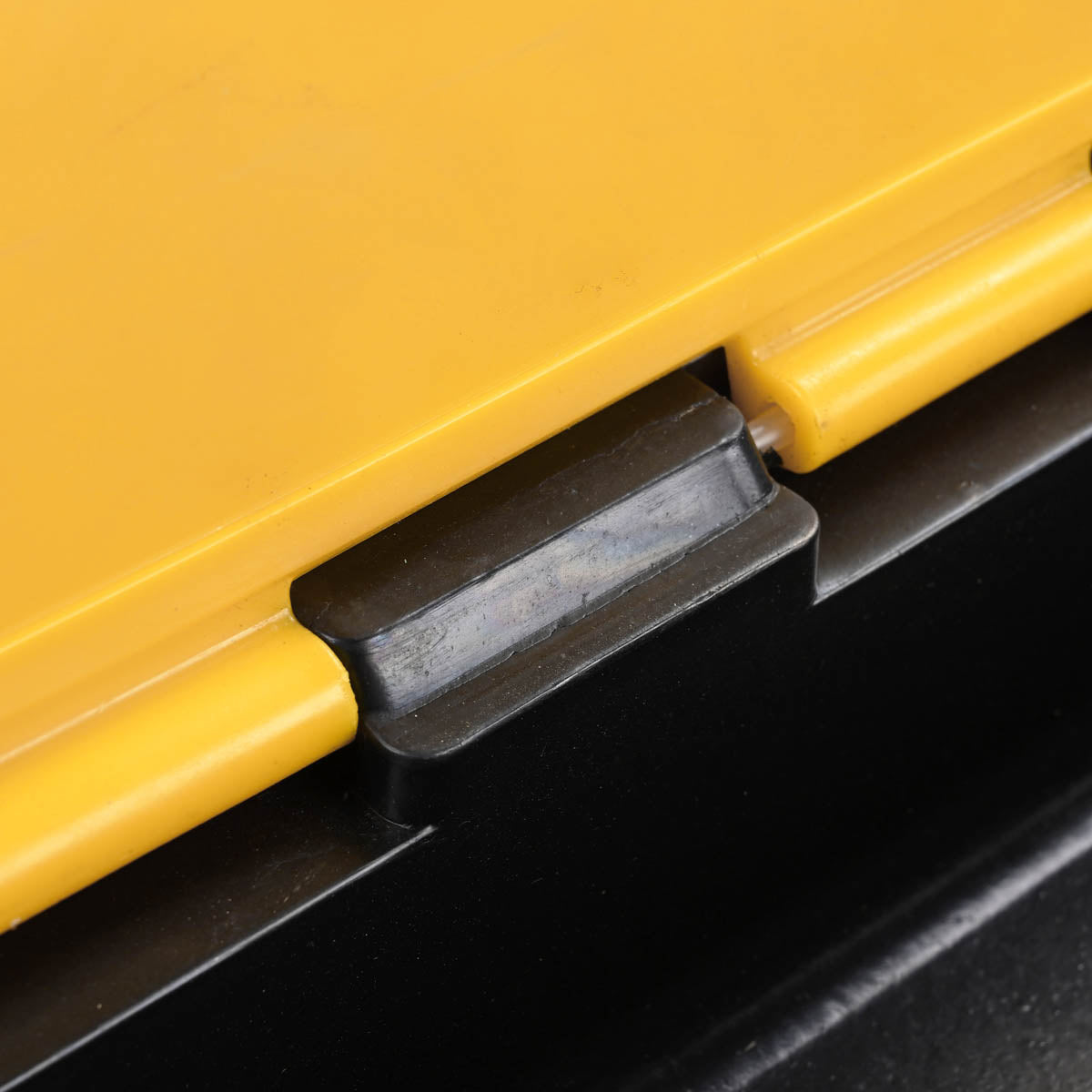

• High-Visibility & All-Weather Traction: Each of the three channels features a bright yellow, flip-open lid that creates a highly visible safety zone and acts as a speed bump. The deep, anti-slip tread pattern ensures traction for vehicles and personnel in all conditions, from muddy construction sites to slick event floors.

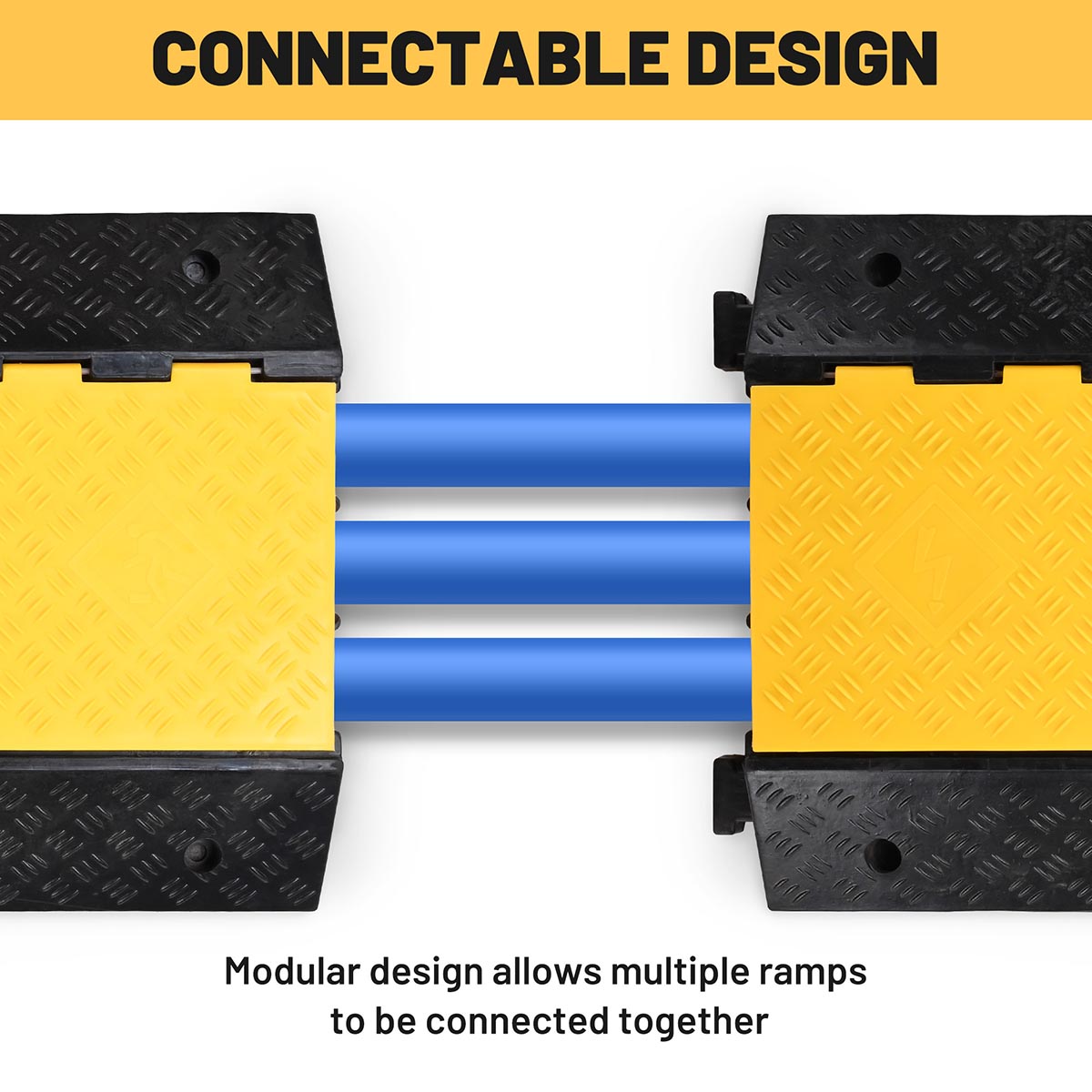

• Modular, Interlocking System for Flexible Layouts: Heavy-duty male/female connectors on all sides allow you to interlock units end-to-end for long runs or side-by-side to create expansive protected cable corridors across large work areas. Setup and reconfiguration are quick and secure.

SPECIFICATIONS

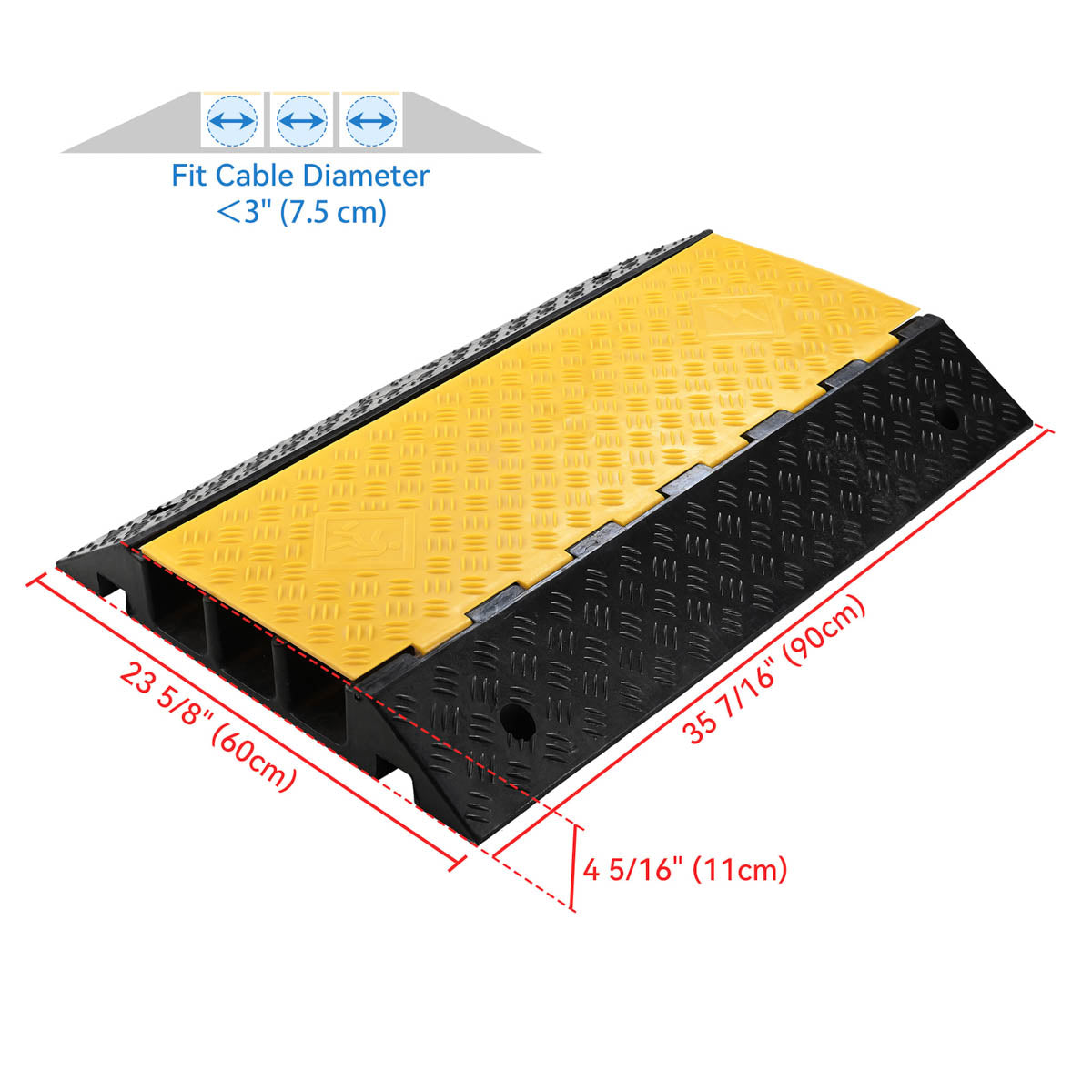

• Overall Dimension(LxWxH): 35 7/16" x 23 5/8" x 4 5/16"
• Channel Size (WxH): 3 9/16" x 2 15/16" - Fits 3-inch cables/hoses perfectly
• Lid Thickness: 3/16" (5 mm)

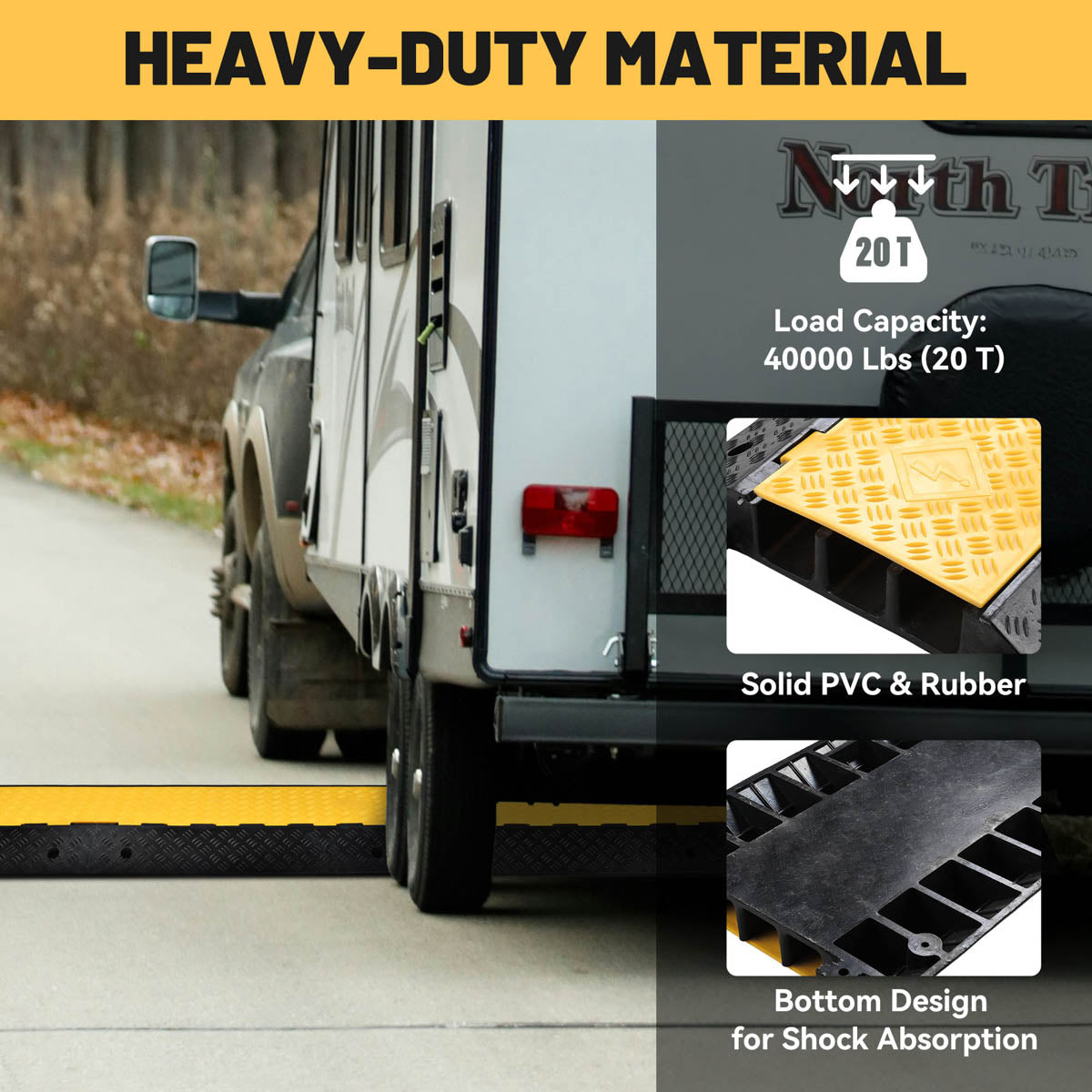

• Heavy-Duty Load Capacity: 44,000 lbs (20 tons) - Built to withstand trucks, forklifts, and continuous vehicle traffic.
• Material: Durable PVC & Rubber Composite
• Net Weight: 46lbs.
• Pallet Quantity: 60pcs; LTL Quantity: 10pcs. Quote me

PACKAGE CONTENTS

• 1x Cable Protector Ramp
